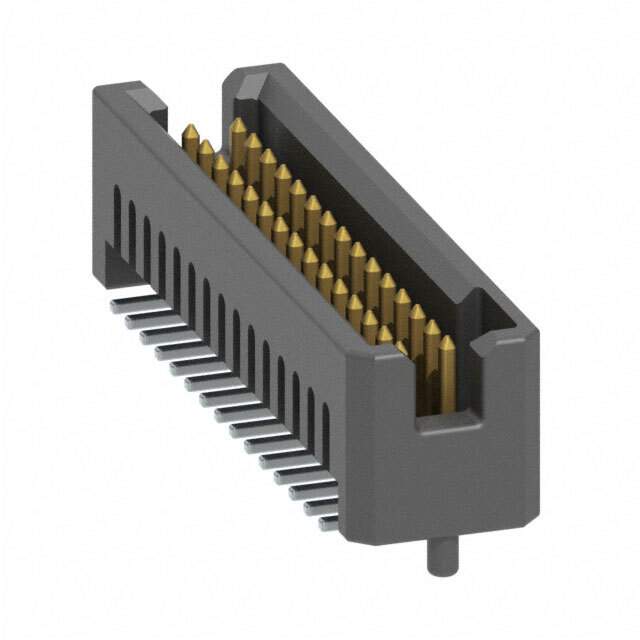

TFM-115-02-S-D-A

Name: TFM-115-02-S-D-A
Brand: Samtec Inc.
SKU: 1099140
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TFM-115-02-S-D-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 30POS 1.27MM / Connector Header Surface Mount 30 position 0.050" (1.27mm)
Datasheet	TFM-115-02-S-D-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Tiger Eye™ TFM
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	30
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.131" (3.33mm)
Insulation Height	0.220" (5.60mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Guide
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.9A per Contact
Voltage Rating	275VAC
Base Product Number	TFM-115
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM10140
Standard Package	26
Win Source Part Number	1099140-TFM-115-02-S-D-A
Ultra Librarian 3D Model	Ultra Librarian TFM-115-02-S-D-A CAD Model

Alternative Products

Description

The Tiger Eye™ TFM 115-02-S-D-A is a 30-position male pin header with a 2-row design.

Series: Tiger Eye™ TFM
Product Name: 115-02-S-D-A
Positions: 30
Rows: 2
Features: Board guide
Fastening Mechanism: Push-pull
Contact Material: Phosphor bronze
Contact Finish: Gold
Mounting: Surface mount
Pitch: 1.27mm
Insulation Material: Liquid crystal polymer (LCP)
Insulation Color: Black
Voltage Rating: 275VAC
Temperature Range: -55°C to 125°C
Packaging: Tube
Package Quantity: 26 units
Suitable for: Board-to-board or cable connections
