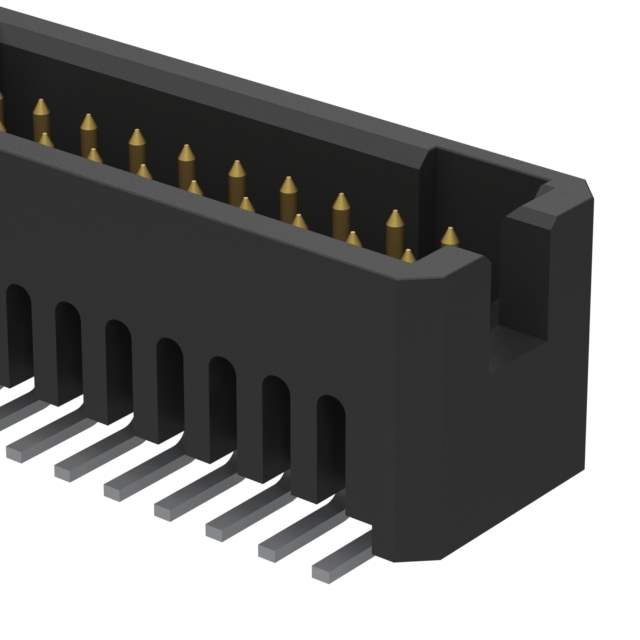

TFC-118-02-L-D-K

Get a Quote

Part No	TFC-118-02-L-D-K
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	.050 X .050 TERMINAL STRIP / Connector Header Surface Mount 36 position 0.050" (1.27mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Tiger Eye™ TFC
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	36
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.131" (3.33mm)
Insulation Height	0.226" (5.74mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.1A per Contact
Voltage Rating	275VAC
Base Product Number	TFC-118
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	21
Win Source Part Number	1099129-TFC-118-02-L-D-K
Ultra Librarian 3D Model	Ultra Librarian TFC-118-02-L-D-K CAD Model

Alternative Products

Description

The TFC-118-02-L-D-K is a rectangular connector from Samtec Inc.

Manufacturer: Samtec Inc.
Product Name: TFC-118-02-L-D-K
Series: Tiger Eye™ TFC
Type: Male pin header
Positions: 36
Loaded Positions: All positions
Rows: Two
Termination: Solder
Application: Board-to-board or cable
Pitch: 1.27mm
Current Rating: 3.1A per contact
Voltage Rating: 275VAC
Flammability Rating: UL94 V-0
Temperature Range: -55°C to 125°C
Package: Tube
Standard Package: 21 units
