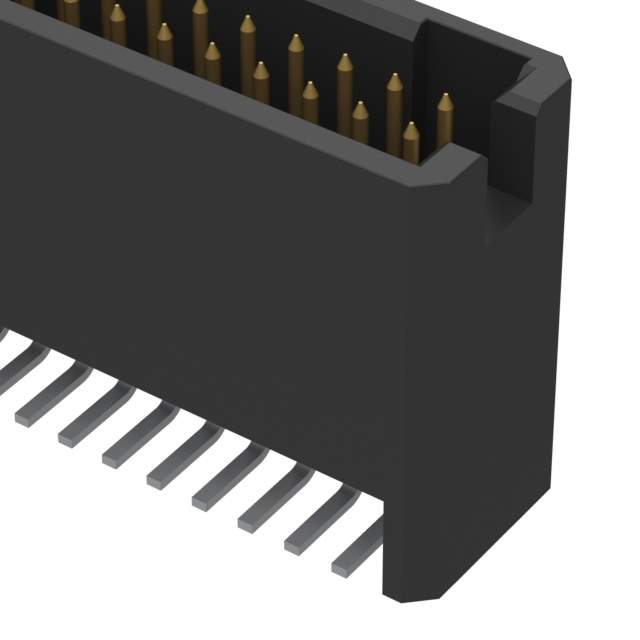

Same model may have multiple batches, images only for reference.

TFC-112-32-L-D

Name: TFC-112-32-L-D
Brand: Samtec Inc.
SKU: 1034625
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	TFC-112-32-L-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	.050 X .050 TERMINAL STRIP / Connector Header Surface Mount 24 position 0.050" (1.27mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Tiger Eye™ TFC
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	24
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.139" (3.53mm)
Insulation Height	0.441" (11.20mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.1A per Contact
Voltage Rating	275VAC
Base Product Number	TFC-112
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	30
Win Source Part Number	1034625-TFC-112-32-L-D
Ultra Librarian 3D Model	Ultra Librarian TFC-112-32-L-D CAD Model

Description

The TFC-112-32-L-D is a male pin connector from Samtec Inc.

Series: Tiger Eye™ TFC
Positions: 24
Loading: All Positions
Connector Type: Header
Contact Type: Male Pin
Rows: 2
Pitch-Mating: 0.050 inches
Fastening Type: Push-Pull
Termination: Solder
Contact Material: Phosphor Bronze
Contact Finish-Mating: Gold
Contact Finish-Post: Tin
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Mounting: SMD (SMT)
Row Spacing-Mating: 0.050 inches
ECCN: EAR99
HTSUS: 8536.69.4040
MSL Level: 1
Current Rating (Amps): 3.1A per Contact
