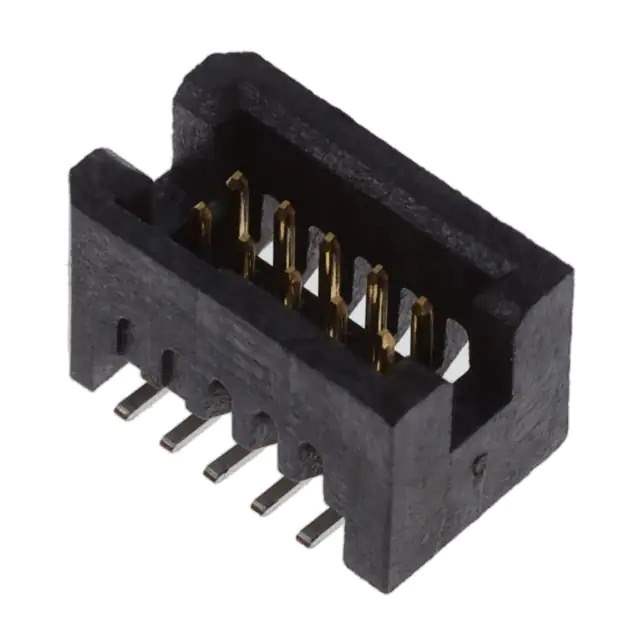

Same model may have multiple batches, images only for reference.

TFC-105-02-L-D-K-TR

Name: TFC-105-02-L-D-K-TR
Brand: Samtec Inc.
SKU: 936395
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TFC-105-02-L-D-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	.050 X .050 TERMINAL STRIP / Connector Header Surface Mount 10 position 0.050" (1.27mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Tiger Eye™ TFC
Package	Tape & Reel
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.131" (3.33mm)
Insulation Height	0.226" (5.74mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.1A per Contact
Voltage Rating	275VAC
Base Product Number	TFC-105
Standard Package	475 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	936395-TFC-105-02-L-D-K-TR
Ultra Librarian 3D Model	Ultra Librarian TFC-105-02-L-D-K-TR CAD Model

Alternative Products

Description

The 936395-TFC-105-02-L-D-K-TR is a male pin header connector from Samtec Inc.

Series: Tiger Eye™ TFC
Positions: 10
Connector Type: Header
Mounting: Surface Mount
Contact Material: Phosphor Bronze
Voltage Rating: 275VAC
Pick and Place: Yes
Contact Finish: Gold
Packaging: Tape and Reel
Standard Package: 475 pieces
