Same model may have multiple batches, images only for reference.

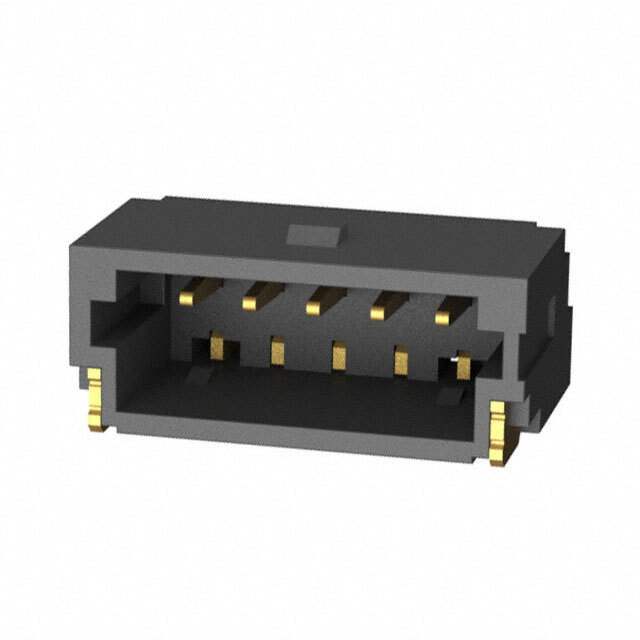

T1M-05-GF-S-RA-TR Samtec Inc.
Same model may have multiple batches, images only for reference.

T1M-05-GF-S-RA-TR

Part No T1M-05-GF-S-RA-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 5POS 1MM
Datasheet
T1M-05-GF-S-RA-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1208151-T1M-05-GF-S-RA-TR
Manufacturer Samtec Inc.Samtec Inc.
Category Connectors, Interconnects- Rectangular Connectors -Headers, Male Pins
Series Micro Mate™ T1M
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Style Board to Cable/Wire
Mounting Type Surface Mount, Right Angle
Ultra Librarian 3D Model Ultra Librarian T1M-05-GF-S-RA-TR CAD Model

Description

Connector Header Surface Mount, Right Angle 5 position 0.039" (1.00mm)
