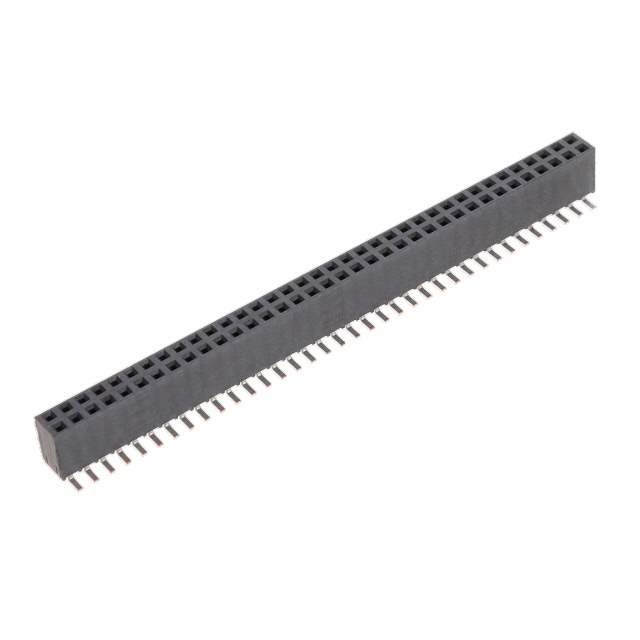

SSW-136-22-F-D-VS

Name: SSW-136-22-F-D-VS
Brand: Samtec Inc.
SKU: 1288146
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SSW-136-22-F-D-VS
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSW-136-22-F-D-VS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSW
Package	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	72
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	4.7A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSW-136
Standard Package	6
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1288146-SSW-136-22-F-D-VS
Ultra Librarian 3D Model	Ultra Librarian SSW-136-22-F-D-VS CAD Model

Alternative Products

Description

The SSW series 1288146-SSW-136-22-F-D-VS is a 72 position receptacle connector with a pitch of 0.100 inches (2.54mm).

Positions: 72
Pitch: 0.100 inches (2.54mm)
Application Style: Board-to-board or cable applications
Contact Type: Forked
Fastening Type: Push-Pull
Positions Loaded: All
Contact Material: Phosphor Bronze
Termination: Solder
Current: 4.7A per contact
Temperature Range: -55°C to 125°C
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Height: 0.335 inches (8.51mm)
Flammability Rating: UL94 V-0
Contact Finish for Mating: Gold with a thickness of 3.00µin (0.076µm)
Contact Finish for Post: Tin
Package: Tube
Standard Package: 6 connectors
