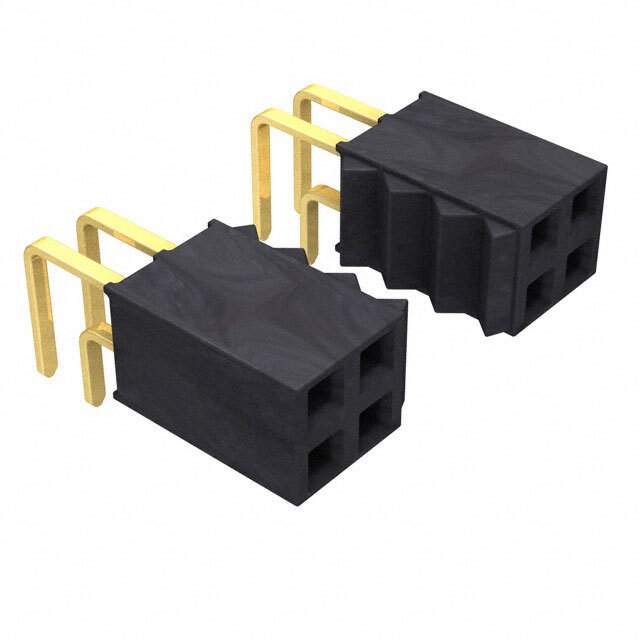

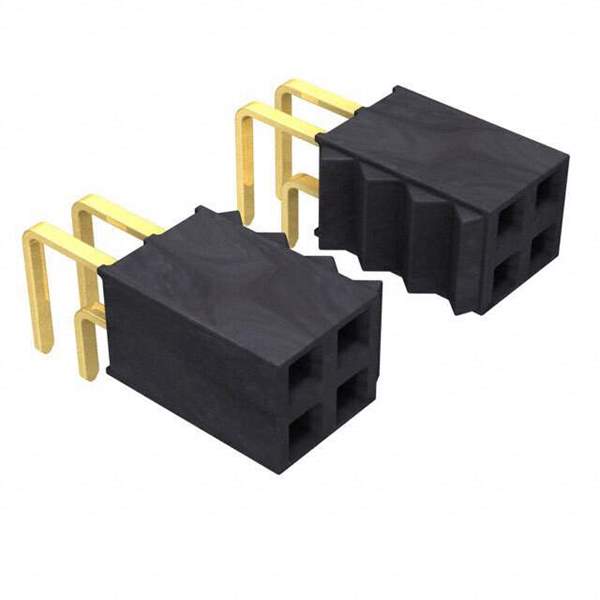

The SSW-123-02-G-D-RA is a socket strip connector manufactured by Samtec Inc., belonging to their SSW series of board-to-board interconnect solutions. This particular model features a right-angle body orientation and a double-row configuration, making it well-suited for applications requiring a high density of connections in a limited space, often found in compact electronic devices.

Applications

• Right-Angle Board Connections: Specifically designed for connecting PCBs at a 90-degree angle, allowing for space-efficient designs.
• High-Density Interconnect: Provides a large number of connection points in a small area, ideal for dense electronic assemblies.
• Vertical Board Stacking: Enables vertical stacking of PCBs in confined spaces.
• Signal Routing: Facilitates efficient signal routing in compact electronic systems.
• Embedded Systems: Commonly used in embedded systems where space is a premium.

Features

• Number of Positions: 46 (23 per row, double row configuration) offering a high number of connection points.
• Pitch: 0.100" (2.54 mm) pitch ensuring compatibility with standard PCB grid patterns.
• Mounting Type: Through-hole mounting providing a robust and reliable connection to the PCB.
• Row Spacing: 0.100" (2.54 mm) standard row spacing for easy integration.
• Body Orientation: Right-angle for space-saving board connections.
• Insulator Material: Black Liquid Crystal Polymer (LCP) providing excellent high-temperature performance and chemical resistance.
• Contact Material: Phosphor Bronze contacts providing good conductivity and durability.
• Plating: Gold plating on the contacts ensuring reliable electrical performance and corrosion resistance.

Benefits

• Space-Saving Design: Right-angle configuration allows for efficient use of space, particularly where vertical stacking is needed.
• High Connection Density: Double-row configuration maximizes the number of connections in a small footprint.
• Reliable Connection: Gold-plated contacts ensure a stable and dependable electrical connection, minimizing signal loss.
• Durable Construction: LCP insulator and Phosphor Bronze contacts provide excellent durability and a long service life.
• Easy Installation: Through-hole mounting simplifies the installation process.

The SSW-123-02-G-D-RA socket strip connector is a high-density, space-saving solution for board-to-board connectivity needs. Its combination of right-angle orientation, double-row configuration, gold-plated contacts, and robust materials makes it ideal for demanding applications in compact electronic devices.
