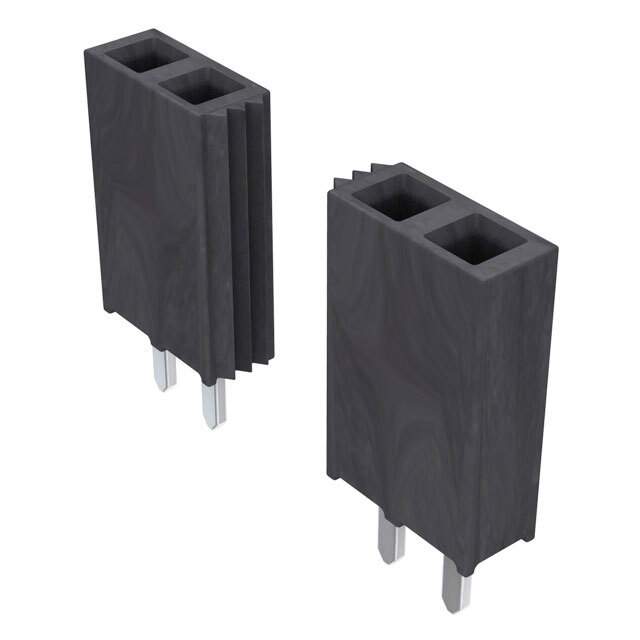

SSW-122-01-T-S

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SSW-122-01-T-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSW-122-01-T-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSW
Package	Bulk
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	22
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.104" (2.64mm)
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	4.7A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSW-122
Other Names	SAM1213-22
Standard Package	1
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1288692-SSW-122-01-T-S
Ultra Librarian 3D Model	Ultra Librarian SSW-122-01-T-S CAD Model

Alternative Products

Description

The Samtec Inc. SSW series connector is a rectangular connector designed for board to board or cable connections.

Connector Type: Receptacle
Contact Type: Forked
Positions Loaded: 22
Number of Rows: 1
Termination Type: Solder
Fastening Type: Push-Pull
Contact Material: Phosphor Bronze
Insulation Material: Liquid Crystal Polymer (LCP)
Pitch: 0.100" (2.54mm)
Contact Finish Mating: Tin
Contact Finish Post: Tin
Insulation Color: Black
Mounting Type: Through Hole
Temperature Range: -55°C ~ 105°C
Current Rating: 4.7A per contact
