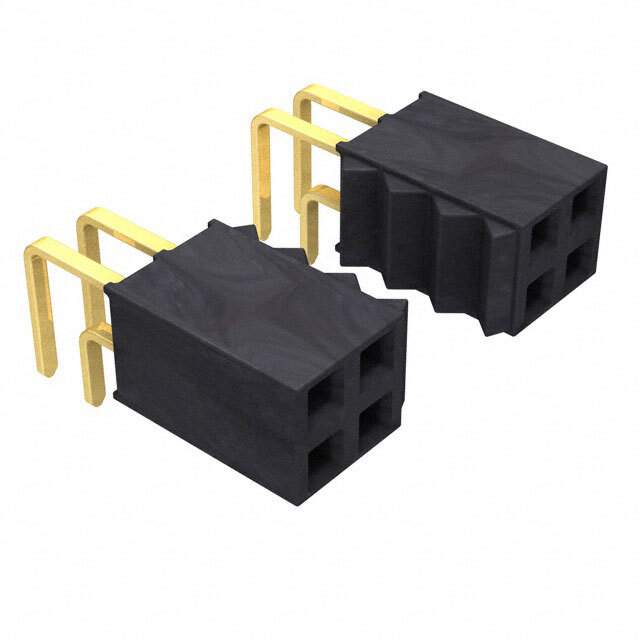

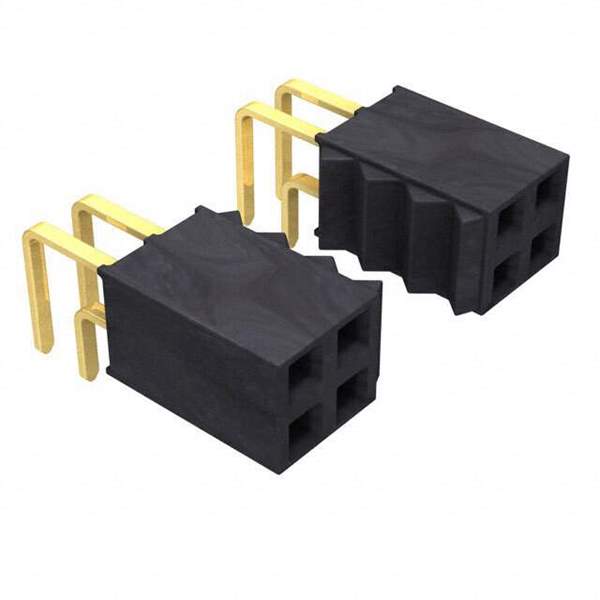

The SSW-121-02-G-D-RA is a Samtec Inc. socket strip connector, part of the SSW series, offering versatile board-to-board connectivity solutions. This particular model features a right-angle orientation and a double-row configuration, making it suitable for applications where space is limited and a high number of connections are required. It's designed for through-hole mounting to ensure a secure and reliable connection to the PCB.

Applications

• Right-Angle Board Connections: Connects PCBs at a 90-degree angle, optimizing space within electronic devices.
• High-Density Interconnect: Suitable for applications requiring a high number of connections in a small area.
• Vertical Board Stacking: Facilitates vertical stacking of PCBs in compact electronic systems.
• Signal Routing: Efficiently routes signals in confined spaces.
• Industrial Automation: Used in industrial automation equipment for robust and space-saving board connections.

Features

• Number of Positions: 42 (21 per row, double row).
• Pitch: 0.100" (2.54 mm) standard pitch for compatibility with common PCB layouts.
• Mounting Type: Through-hole mounting provides a strong mechanical connection to the PCB.
• Row Spacing: 0.100" (2.54 mm) standard row spacing simplifies integration.
• Body Orientation: Right-angle, allowing for perpendicular board connections.
• Insulator Material: Black Liquid Crystal Polymer (LCP), known for its high-temperature resistance and chemical stability.
• Contact Material: Phosphor Bronze for good conductivity and durability.
• Plating: Gold plating on contacts ensures reliable electrical performance and corrosion resistance.

Benefits

• Space-Saving Design: Right-angle orientation maximizes space utilization within electronic devices, especially where vertical stacking is required.
• High Connection Density: Double-row configuration provides a high number of connections in a compact footprint.
• Reliable Connection: Gold-plated contacts ensure a dependable electrical connection, minimizing signal loss and ensuring long-term stability.
• Robust Construction: LCP insulator and Phosphor Bronze contacts provide excellent durability, ensuring a long service life in demanding applications.
• Easy Installation: Through-hole mounting facilitates easy and secure installation onto the PCB.

The SSW-121-02-G-D-RA socket strip connector from Samtec provides a space-saving, high-density, and reliable solution for right-angle board-to-board connectivity. Its robust construction, gold-plated contacts, and right-angle orientation make it a suitable choice for applications where space is limited and a large number of connections are required.
