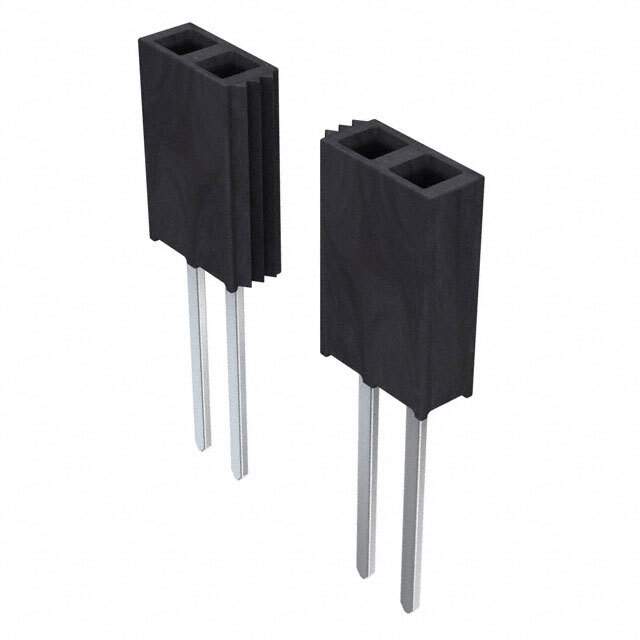

Same model may have multiple batches, images only for reference.

SSW-108-03-T-S

Name: SSW-108-03-T-S
Brand: Samtec Inc.
SKU: 1288512
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SSW-108-03-T-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSW-108-03-T-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSW
Package	Bulk
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	8
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.394" (10.00mm)
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	4.7A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSW-108
Other Names	SSW-108-03-T-S,SAM8866,Q3696546
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1288512-SSW-108-03-T-S
Ultra Librarian 3D Model	Ultra Librarian SSW-108-03-T-S CAD Model

Alternative Products

Description

The SSW-108-03-T-S is a rectangular connector from Samtec Inc. It is a receptacle type connector with forked contacts and has 8 positions loaded for all rows.

Positions Loaded: 8
Pitch: 0.100" (2.54mm)
Contact Finish: Tin
Contact Material: Phosphor Bronze
Insulation Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Current Rating: 4.7A per contact
Temperature Range: -55°C to 105°C
Packaging: Bulk
Suitable for: Board-to-Board or Cable Style Connections
REACH: Unaffected
ECCN: EAR99
