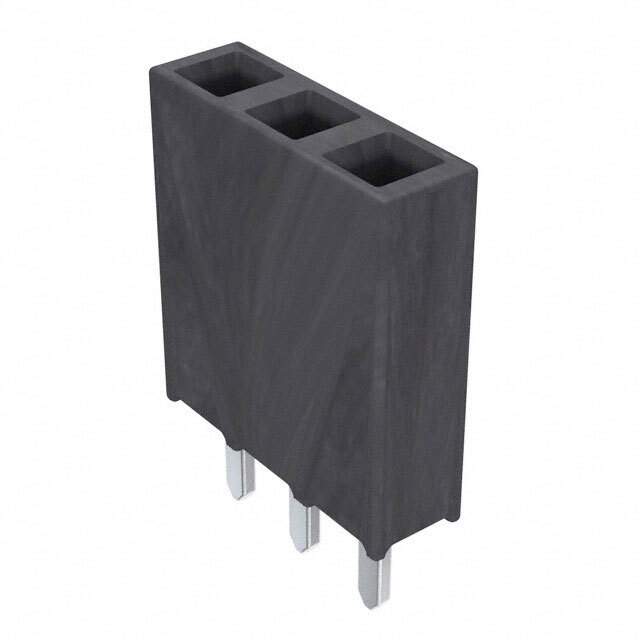

Name: SSW-103-01-T-S
Brand: Samtec Inc.
SKU: 1288409
Availability: InStock
Rating: 4.85 (5 reviews)

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSW
Package	Bulk
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	3
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.104" (2.64mm)
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	4.7A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSW-103
Other Names	SAM1213-03
Standard Package	1
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1288409-SSW-103-01-T-S
Ultra Librarian 3D Model	Ultra Librarian SSW-103-01-T-S CAD Model

Description

The SSW series connector is a receptacle type connector with a forked contact type and is a board-to-board or cable type connector.

Connector Type: Receptacle
Contact Type: Forked
Pitch-Mating: 0.100” (2.54mm)
Mounting: Through-Hole
Contact Material: Phosphor Bronze
Contact Finish-Mating: Tin
Contact Finish-Post: Tin
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Temperature Range: -55°C to 105°C
Current Rating: 4.7A per contact
Flammability Rating: UL94 V-0
REACH: Unaffected
Positions: 3
Positions Loaded: All
Package: Bulk
Fastening Type: Push-Pull
