Same model may have multiple batches, images only for reference.

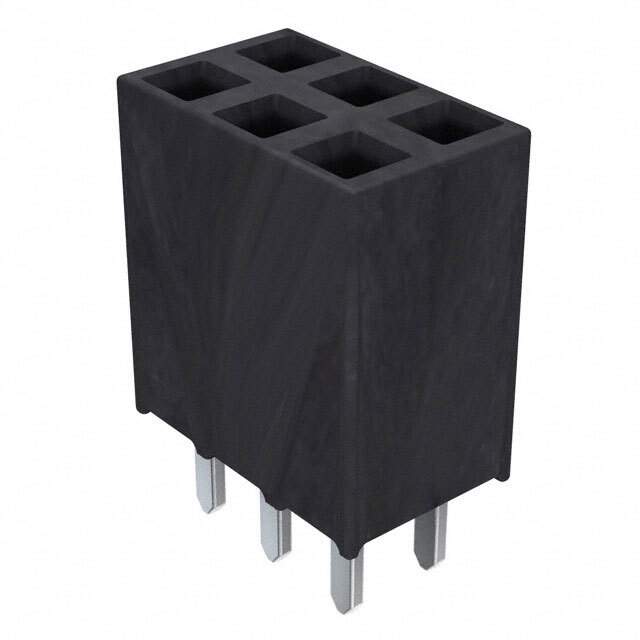

SSW-103-01-T-D Real Image
Same model may have multiple batches, images only for reference.

SSW-103-01-T-D

Part No SSW-103-01-T-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSW-103-01-T-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSW
Package Bulk
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 6
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Insulation Color Black
Insulation Height 0.335" (8.51mm)
Contact Length - Post 0.104" (2.64mm)
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 4.7A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SSW-103
Other Names SAM1212-03
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1288408-SSW-103-01-T-D
Ultra Librarian 3D Model Ultra Librarian SSW-103-01-T-D CAD Model

Description

The Samtec Inc. SSW connector is a high-quality, board-to-board or cable connector designed to provide reliable and secure connections.

  • Win Source Part Number: 1288408-SSW-103-01-T-D
  • Positions: 6
  • Connector Type: Receptacle
  • Mounting: Through-Hole
  • Contact Material: Phosphor Bronze
  • Current Rating: 4.7A per contact
