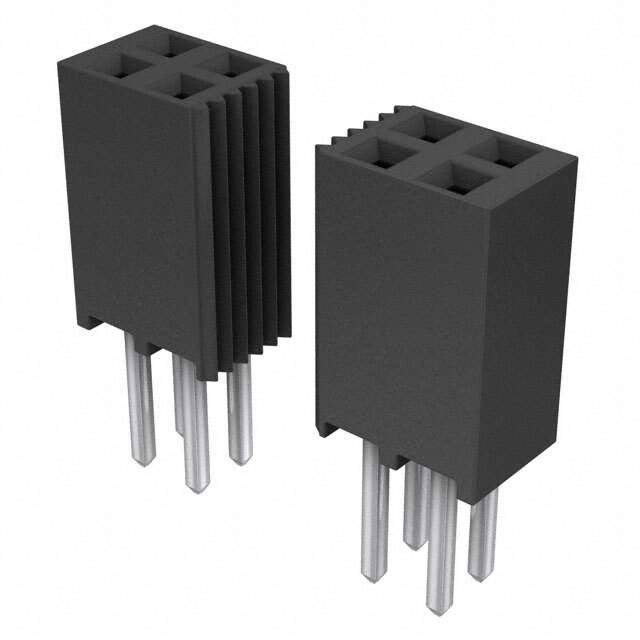

The Samtec Inc. SSQ Series 72-Position Rectangular Connector is a receptacle type connector that is designed to provide a reliable and secure connection for your electronic devices.

• Series: SSQ
• Positions: 72
• Connector Type: Receptacle
• Contact Type: Forked
• Positions Loaded: All
• Contact Material: Phosphor Bronze
• Voltage Rating: 465VAC and 655VDC
• Fastening Type: Push-Pull
• Mounting: Through Hole
• Material Flammability Rating: UL94 V-0
• Temperature Range: -55°C to 105°C
• Style: Board to Board or Cable
• Pitch: 0.100" (2.54mm)
• Contact Finish (Mating): Tin
• Contact Finish (Post): Tin
• Color: Black
• Row Spacing: 0.100" (2.54mm)
• Contact Length (Post): 0.194" (4.93mm)
• Insulation Height: 0.335" (8.51mm)
