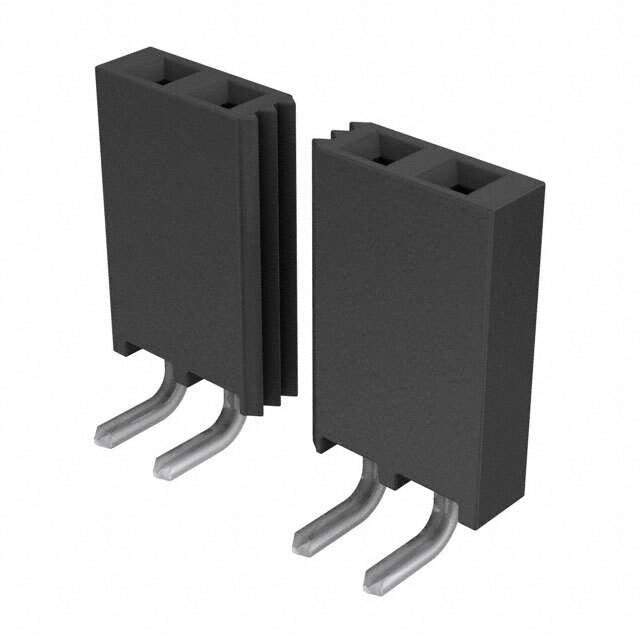

The SSQ series connector is a receptacle type connector with a forked contact type.

• It has 30 positions loaded with all contacts soldered:
• The contact material is made up of phosphor bronze with a voltage rating of 465VAC and 655VDC:
• The connector has a push-pull fastening type and is packaged in bulk:
• The insulation material used is liquid crystal polymer (LCP) with a flammability rating of UL94 V-0:
• The connector is board to board or cable style with a pitch-mating of 0.100" (2.54mm) and contact finish-mating of tin:
• The contact finish-post is also tin with a contact length of 0.100" (2.54mm):
• The connector has a right-angle through-hole mounting type and an insulation height of 0.095" (2.41mm):
• It has a square contact shape and an operating temperature range of -55°C ~ 105°C:
