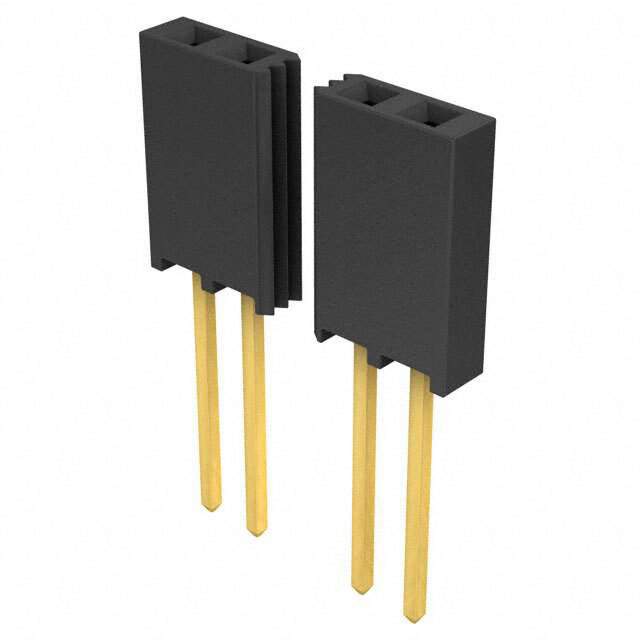

The SSQ-127-03-G-S is a rectangular connector from Samtec Inc. that is categorized under Headers, Receptacles, Female Sockets.

• Product Series: SSQ
• Positions: 27
• Receptacle Connector: Yes
• Contact Type: Forked
• Positions Loaded: All
• Rows: One
• Termination: Soldering
• Fastening Type: Push-Pull
• Package: Bulk
• Contact Material: Phosphor Bronze
• Voltage Rating: 465VAC, 655VDC
• Material Flammability Rating: UL94 V-0
• Insulation Material: Liquid Crystal Polymer (LCP)
• Style: Board to Board or Cable
• Pitch-Mating: 0.100" (2.54mm)
• Contact Finish-Mating: Gold
• Contact Finish Thickness-Mating: 20.0µin (0.51µm)
• Contact Finish-Post: Gold
• Contact Finish Thickness-Post: 3.00µin (0.076µm)
• Insulation Color: Black
• Mounting: Through Hole
• Contact Length-Post: 0.394" (10.00mm)
• Insulation Height: 0.335" (8.51mm)
• Contact Shape: Square
• Operating Temperature Range: -55°C ~ 125°C
• HTSUS: 8536.69.4040
• Base Product Number: SSQ-127
