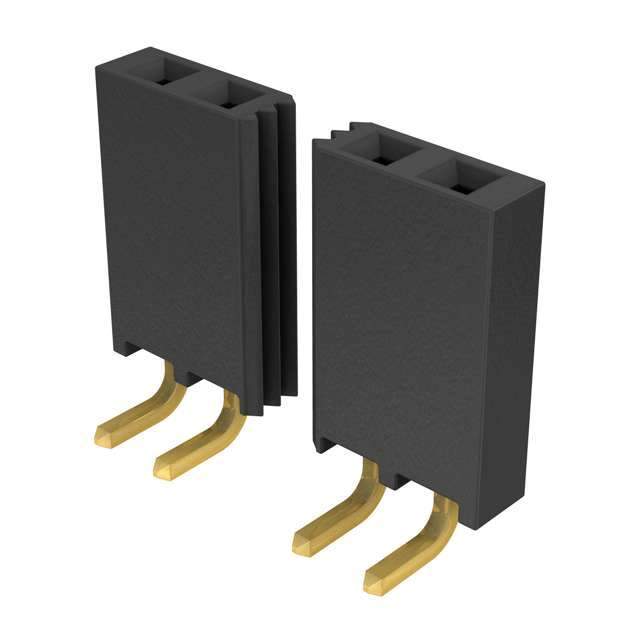

The Samtec Inc. 1096318-SSQ-112-02-G-S-RA is a connector, and it belongs to the Rectangular Connectors - Headers, Receptacles, Female Sockets category.

• Product Series: SSQ
• Positions: 12
• Connector Type: receptacle
• Contact Type: forked
• Positions Loaded: all
• Rows: one
• Termination: solder
• Fastening Type: push-pull
• Package: bulk
• Contact Material: phosphor bronze
• Voltage Rating: 465VAC and 655VDC
• Insulation Material: Liquid Crystal Polymer (LCP)
• Insulation Color: black
• Mounting Type: through hole and right angle
• Pitch-Mating: 0.100" (2.54mm)
• Contact Finish-Mating: gold with a thickness of 20.0µin (0.51µm)
• Contact Finish-Post: gold with a thickness of 3.00µin (0.076µm)
• Insulation Height: 0.095" (2.41mm)
• Contact Shape: square
• Operating Temperature Range: -55°C ~ 125°C
• ECCN: EAR99
• REACH Status: REACH Unaffected
• HTSUS: 8536.69.4040
• Alternative Parts: SSW-112-02-G-S, BCS-112-L-S-HE, SSW-112-02-G-S-RA, 1-215297-2, 6-535541-0, and 75915-312LFSSQ11202GSRA
