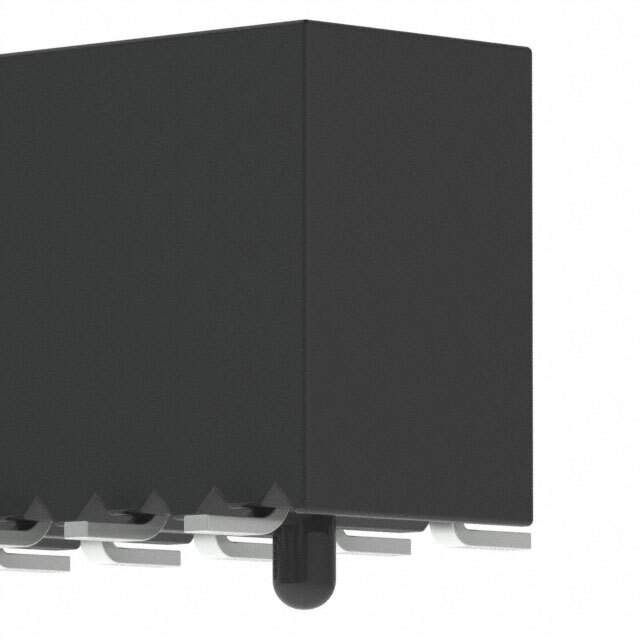

SSM-125-L-DV-BE-A

Name: SSM-125-L-DV-BE-A
Brand: Samtec Inc.
SKU: 1291865
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SSM-125-L-DV-BE-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSM-125-L-DV-BE-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSM
Package	Tube
Connector Type	Receptacle, Bottom Entry
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	50
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.290" (7.37mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Features	Board Guide
Current Rating (Amps)	5.2A per Contact
Voltage Rating	405VAC, 572VDC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSM-125
Standard Package	9
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1291865-SSM-125-L-DV-BE-A
Ultra Librarian 3D Model	Ultra Librarian SSM-125-L-DV-BE-A CAD Model

Description

The Samtec Inc. SSM-125-L-DV-BE-A is a 50-position rectangular connector that is commonly used in electronic devices.

Connector Type: Receptacle, Bottom Entry
Contact Type: Female Sockets
Pitch: 0.100" (2.54mm)
Row Spacing: 0.100" (2.54mm)
Contact Finish: Gold with a thickness of 10.0µin (0.25µm)
Contact Material: Phosphor Bronze
Insulation Material: Liquid Crystal Polymer (LCP)
Voltage Rating: 405VAC, 572VDC
Current Rating: 5.2A per contact
Temperature Range: -55°C ~ 125°C
