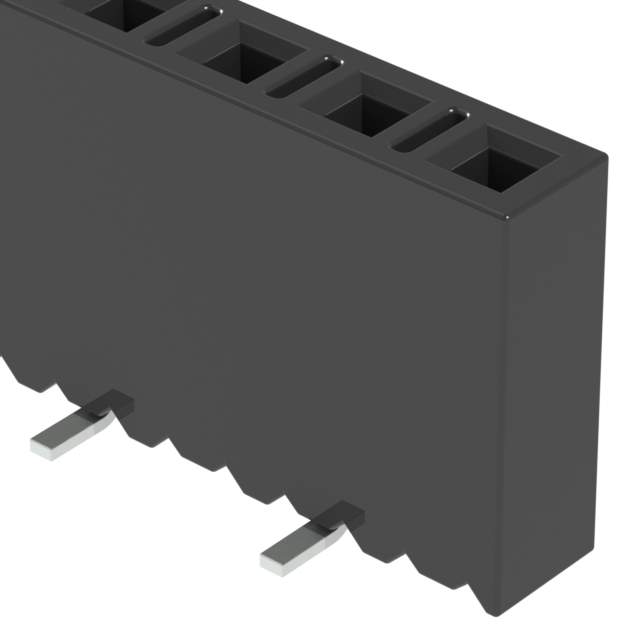

The SSM series female socket receptacle is a board to board or cable connector that is designed to provide a reliable connection for electronic components.

• Fastening Type: Push-pull.
• Termination: Solder.
• Contact Shape: Square.
• Contact Material: Phosphor bronze.
• Contact Finish: Gold plating for mating contacts and tin plating for post contacts.
• Voltage Rating: 405VAC and 572VDC.
• Current Rating: 5.2A per contact.
• Temperature Range: -55°C to 125°C.
• Insulation Material: Liquid Crystal Polymer (LCP).
• Positions: 11 positions.
• Positions Loaded: All positions.
• Package: Bulk.
• Pitch-Mating: 0.100" (2.54mm).
• Contact Finish Thickness: 30.0μin (0.76μm).
