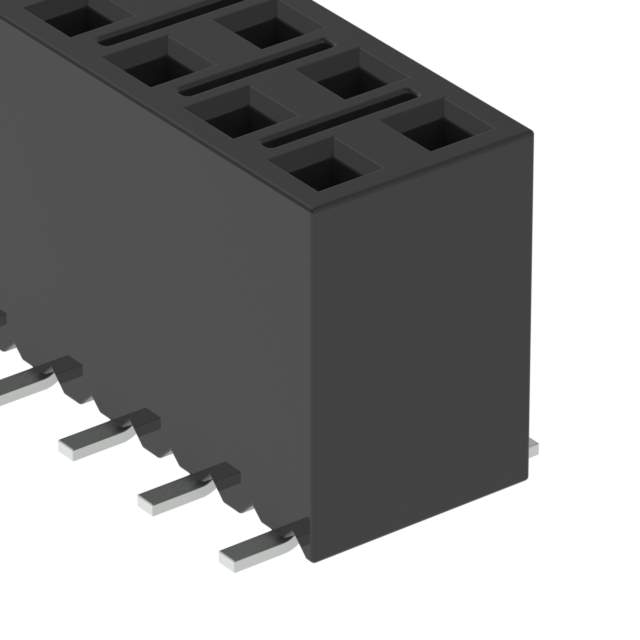

SSM-110-L-DV-LC-TR Real Image
Same model may have multiple batches, images only for reference.

SSM-110-L-DV-LC-TR

Part No SSM-110-L-DV-LC-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSM-110-L-DV-LC-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSM
Package Tape & Reel (TR)
Connector Type Receptacle, Pass Through
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.290" (7.37mm)
Temperature Range - Operating -55°C ~ 125°C
Contact Finish - Post Tin
Features Board Lock
Current Rating (Amps) 5.2A per Contact
Voltage Rating 405VAC, 572VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SSM-110
Standard Package 300
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1291875-SSM-110-L-DV-LC-TR
Ultra Librarian 3D Model Ultra Librarian SSM-110-L-DV-LC-TR CAD Model

Description

The Samtec Inc. SSM series 20-position receptacle connector is a rectangular connector with a female socket contact type that is loaded with contacts in all positions.

  • Connections: board-to-board or cable style
  • Pitch: 0.100 inches (2.54mm)
  • Voltage Rating: 405VAC and 572VDC
  • Insulation Material: liquid crystal polymer (LCP)
  • Mounting: surface mount
  • Row Spacing: 0.100 inches (2.54mm)
  • Contact Finish Mating: gold
  • Contact Finish Thickness: 10.0μin (0.25μm)
  • Contact Finish Post: tin
  • Insulation Height: 0.290 inches (7.37mm)
  • Temperature Range: -55°C to 125°C
  • Current Rating: 5.2A per contact
