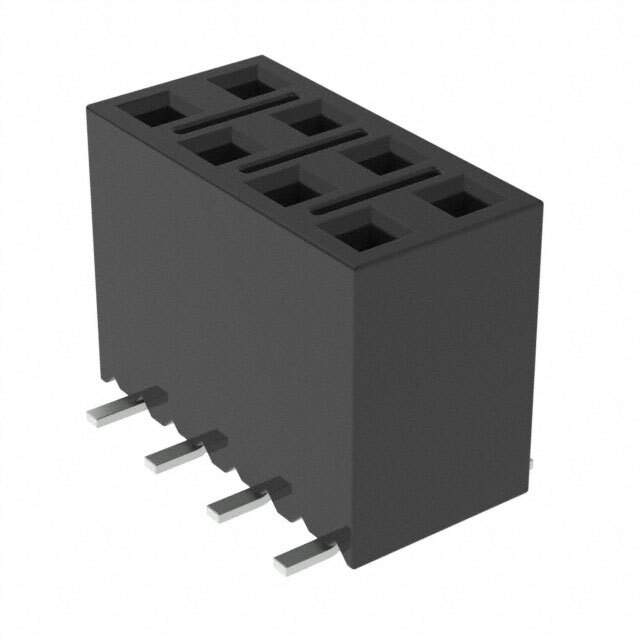

SSM-104-S-DV-P-TR Real Image
Same model may have multiple batches, images only for reference.

SSM-104-S-DV-P-TR

Part No SSM-104-S-DV-P-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSM-104-S-DV-P-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSM
Package Tape & Reel (TR),Cut Tape (CT)
Connector Type Receptacle, Pass Through
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 8
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.290" (7.37mm)
Temperature Range - Operating -55°C ~ 125°C
Contact Finish - Post Tin
Features Pick and Place
Current Rating (Amps) 5.2A per Contact
Voltage Rating 405VAC, 572VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SSM-104
Other Names SSM-104-S-DV-P-FR,SSM-104-S-DV-P-TR,612-SSM-104-S-DV-P-TRCT,612-SSM-104-S-DV-P-TR
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1291889-SSM-104-S-DV-P-TR
Ultra Librarian 3D Model Ultra Librarian SSM-104-S-DV-P-TR CAD Model

Description

The SSM-104-S-DV-P-TR is an 8-position female socket rectangular connector from Samtec Inc. It is a board-to-board or cable style connector with a pitch of 0.100 inches (2.54mm) and a row spacing of 0.100 inches (2.54mm).

  • Contact Type: female socket
  • Positions Loaded: all positions
  • Rows: two
  • Fastening Type: push-pull
  • Termination: solder
  • Contact Material: phosphor bronze
  • Insulation Material: liquid crystal polymer (LCP)
  • Insulation Height: 0.290 inches (7.37mm)
  • Contact Shape: square
  • Temperature Range: -55°C to 125°C
  • Current Rating: 5.2A per contact
  • Voltage Rating: 405VAC, 572VDC
  • REACH: unaffected
  • Applications: board-to-board or cable connection
