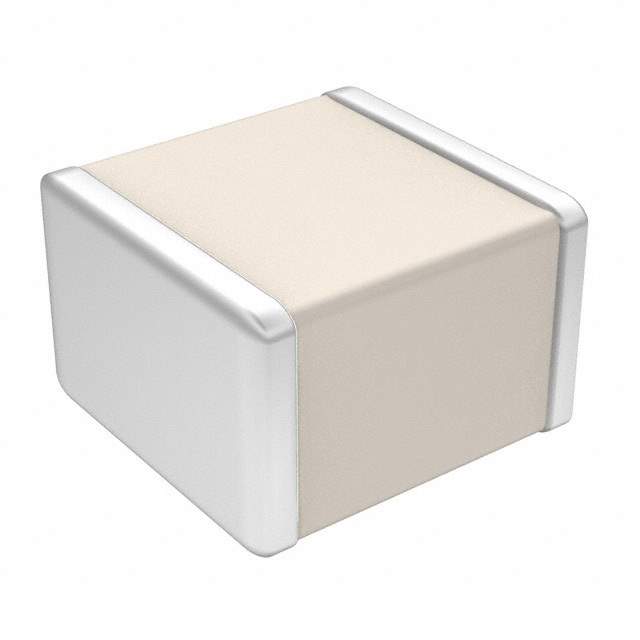

The American Technical Ceramics (ATC) ATC200B103MW50XT is a high-performance, multilayer ceramic capacitor designed for demanding applications requiring high reliability and stability. It is a part of ATC's 200B series, known for its exceptional performance in RF, microwave, and high-frequency circuits. This capacitor is characterized by its low ESR (Equivalent Series Resistance) and high Q-factor, making it suitable for critical applications where signal integrity is paramount.

Applications

• RF and Microwave circuits
• High-frequency filters
• Oscillators
• Matching networks
• Bypass and decoupling applications

Features

• High Q-factor
• Low ESR
• High self-resonant frequency
• Excellent temperature stability
• Small size
• RoHS Compliant

Benefits

• Improved circuit performance due to minimal energy loss
• Enhanced signal integrity in high-frequency applications
• Stable operation over a wide temperature range
• Reduced board space requirements
• Suitable for automated assembly
• Environmentally friendly

Additional Details

The ATC200B103MW50XT capacitor has a capacitance value of 10,000 pF (10 nF) with a tolerance of ±20%. Its voltage rating is 50 VDC. This capacitor is constructed using high-quality ceramic materials and advanced manufacturing processes, ensuring its reliability and longevity. The case size is small, allowing for dense component placement on printed circuit boards. The ATC200B series is widely recognized for its superior performance in high-frequency applications, and the ATC200B103MW50XT is no exception. This capacitor provides stable performance and minimal signal distortion, making it an excellent choice for demanding circuit designs.

The capacitor is designed for surface mount technology (SMT), facilitating automated assembly and reducing manufacturing costs. The ceramic material used in its construction provides excellent insulation and resistance to environmental factors. The high self-resonant frequency ensures that the capacitor operates effectively at high frequencies without exhibiting unwanted inductive behavior. American Technical Ceramics is a leading manufacturer of high-performance capacitors, and the ATC200B103MW50XT reflects their commitment to quality and innovation.
