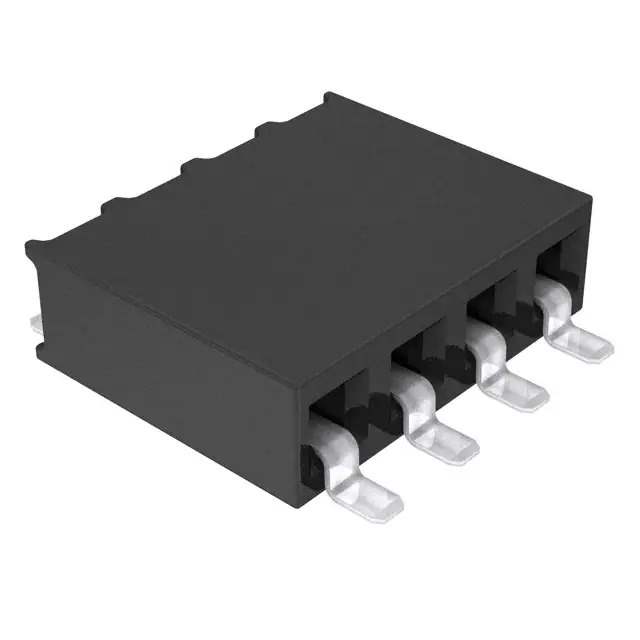

Same model may have multiple batches, images only for reference.

SSM-104-L-SH-TR

Name: SSM-104-L-SH-TR
Brand: Samtec Inc.
SKU: 853994
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SSM-104-L-SH-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 4POS 0.1 GOLD SMD R/A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSM
Package	Tape & Reel
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	4
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.125" (3.18mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Current Rating (Amps)	5.2A per Contact
Voltage Rating	405VAC, 572VDC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSM-104
Standard Package	650 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	853994-SSM-104-L-SH-TR
Ultra Librarian 3D Model	Ultra Librarian SSM-104-L-SH-TR CAD Model

Description

The SSM-104-L-SH-TR is a female socket header connector from Samtec Inc.

Series: SSM
Positions: 4
Connector Type: Receptacle
Termination: Solder
Fastening Type: Push-Pull
Mounting Type: Surface Mount
Mounting Option: Right Angle
Contact Material: Phosphor Bronze
Contact Finish: Gold
Insulation Material: Black Liquid Crystal Polymer (LCP)
Pitch: 0.100" (2.54mm)
Contact Length: 0.320" (8.13mm)
Temperature Range: -55°C to 125°C
Voltage Rating: 405VAC and 572VDC
Package: Tape and Reel
Pieces per Package: 650
Status: Active
California Prop 65: Complies
