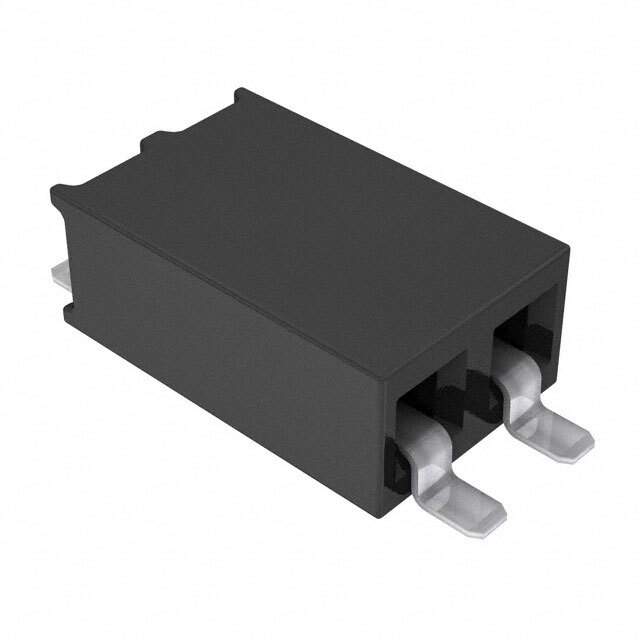

Same model may have multiple batches, images only for reference.

SSM-102-S-SH

Name: SSM-102-S-SH
Brand: Samtec Inc.
SKU: 1291744
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SSM-102-S-SH
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSM
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	2
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.125" (3.18mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Current Rating (Amps)	5.2A per Contact
Voltage Rating	405VAC, 572VDC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSM-102
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1291744-SSM-102-S-SH
Ultra Librarian 3D Model	Ultra Librarian SSM-102-S-SH CAD Model

Alternative Products

Description

The SSM-102-S-SH is a female socket receptacle connector from Samtec Inc.

Pitch: 0.100 inches (2.54mm)
Contact Shape: Square
Current Rating: 5.2A per contact
Voltage Rating: 405VAC and 572VDC
Termination Type: Solder
Fastening Type: Push-Pull
Mounting Type: Surface Mount, Right-Angle
Insulation Color: Black
Contact Finish (Mating): Gold with a thickness of 30.0μin (0.76μm)
Contact Finish (Post): Tin
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Height: 0.125 inches (3.18mm)
Applications: Board-to-board or cable style
Operating Temperature Range: -55°C to 125°C
