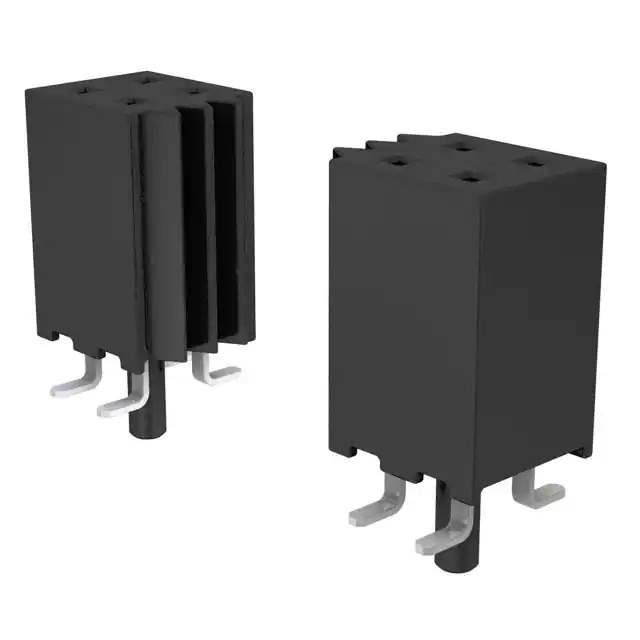

SQW-115-01-F-D-VS-A-P-TR

Name: SQW-115-01-F-D-VS-A-P-TR
Brand: Samtec Inc.
SKU: 897290
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SQW-115-01-F-D-VS-A-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 30POS 0.079 GOLD SMD / 30 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SQW
Package	Tape & Reel
Product Status	Active
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	30
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Insulation Color	Black
Insulation Height	0.300" (7.62mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Board Guide, Pick and Place
Current Rating (Amps)	3.8A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SQW-115
Standard Package	300 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	897290-SQW-115-01-F-D-VS-A-P-TR
Ultra Librarian 3D Model	Ultra Librarian SQW-115-01-F-D-VS-A-P-TR CAD Model

Alternative Products

Description

The SQW series by Samtec Inc. offers reliable rectangular connectors for various applications.

Product: SQW-115-01-F-D-VS-A-P-TR
Connector Type: Receptacle
Number of Positions: 30
Contact Type: Forked
Board Guide: Yes
Pick and Place: Yes
Mounting Type: Surface Mount
Fastening Type: Push-Pull
Voltage Rating: -
Current Rating: 3.8A per contact
Contact Material: Phosphor Bronze
Contact Plating: Gold
Flammability Rating: UL94 V-0
Insulation Material: Liquid Crystal Polymer (LCP)
Pitch: 0.079" (2.00mm)
Contact Finish Thickness: 3.00µin (0.076µm)
Product Status: Active
