Same model may have multiple batches, images only for reference.

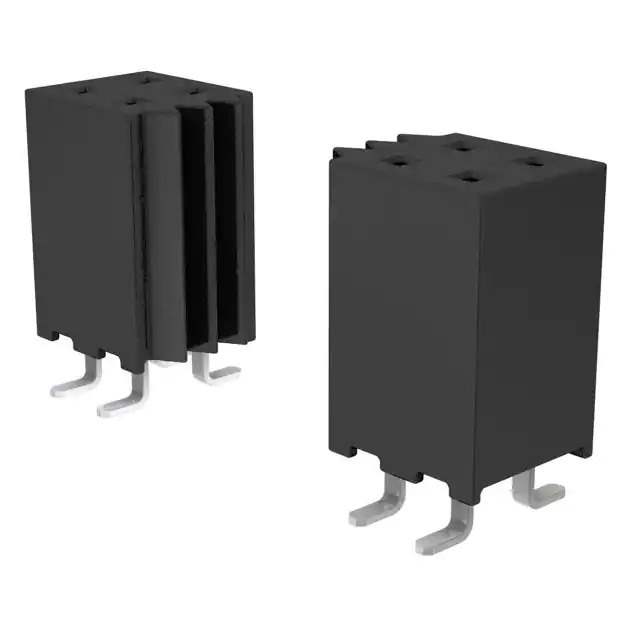

SQW-105-01-L-D-VS-009-K-TR Real Image
Same model may have multiple batches, images only for reference.

SQW-105-01-L-D-VS-009-K-TR

Part No SQW-105-01-L-D-VS-009-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 10POS 0.079 GOLD SMD / 10 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SQW
Package Tape & Reel
Product Status Active
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 10
Number of Positions Loaded 9
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.300" (7.62mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Pick and Place
Current Rating (Amps) 3.8A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SQW-105
Standard Package 350 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 897287-SQW-105-01-L-D-VS-009-K-TR
Ultra Librarian 3D Model Ultra Librarian SQW-105-01-L-D-VS-009-K-TR CAD Model

Description

The SQW series from Samtec Inc. offers high-quality rectangular connectors for various electronic applications.

  • Part Number: 897287-SQW-105-01-L-D-VS-009-K-TR
  • Connector Type: Female Socket Receptacle
  • Number of Positions: 10
  • Number of Rows: 2
  • Pick and Place: Yes
  • Mounting Type: Surface Mount
  • Contact Material: Phosphor Bronze
  • Temperature Range: -55°C to 125°C
  • Voltage Rating: 0V
  • Current Rating: 3.8A per contact
  • Contact Finish (Mating): Gold
  • Contact Finish (Post): Tin
  • Design: Shrouded 4-Wall
  • Package Type: Tape and Reel
  • Pieces per Package: 350
