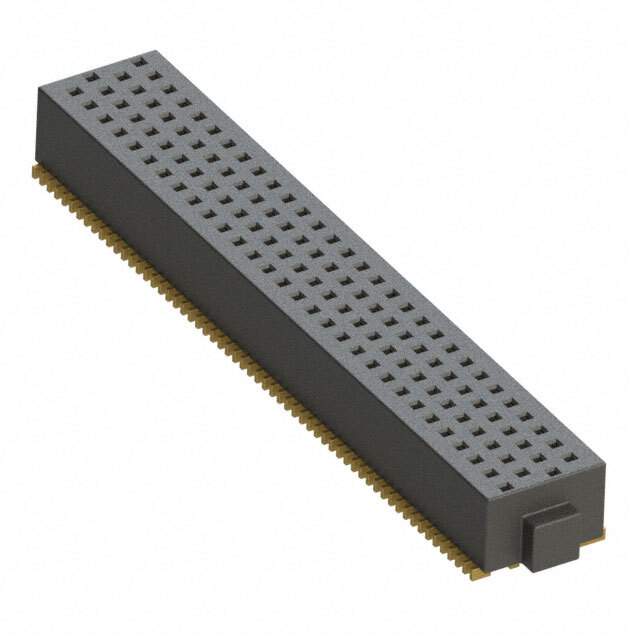

Same model may have multiple batches, images only for reference.

SOLC-130-02-S-Q

Name: SOLC-130-02-S-Q
Brand: Samtec Inc.
SKU: 997958
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SOLC-130-02-S-Q
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 120POS 0.05 GOLD SMD / 120 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Datasheet	SOLC-130-02-S-Q Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	FOURRAY™ SOLC
Package	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	120
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	4
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.160" (4.06mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Current Rating (Amps)	2.4A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	SOLC-130
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM8495
Standard Package	14
Win Source Part Number	997958-SOLC-130-02-S-Q
Ultra Librarian 3D Model	Ultra Librarian SOLC-130-02-S-Q CAD Model

Description

The FOURRAY™ SOLC series is a high-quality board to board connector from Samtec Inc.

Manufacturer: Samtec Inc.
Series: FOURRAY™ SOLC
Product Name: SOLC-130-02-S-Q
Type: Receptacle Connector
Category: Rectangular Connectors
Contact Type: Forked
Termination: Soldered
Fastening Type: Push-Pull
Mounting Type: SMD (SMT)
Contact Material: Phosphor Bronze
Voltage Rating: 550VAC
Current Rating: 2.4A per contact
Temperature Range: -55°C to 125°C
Packaging: Tube
Flammability Rating: UL94 V-0
Insulation Material: Liquid Crystal Polymer (LCP)
Positions: 120
Rows: 4
Pitch: 0.050" (1.27mm)
RoHS: Compliant
ECCN: EAR99
