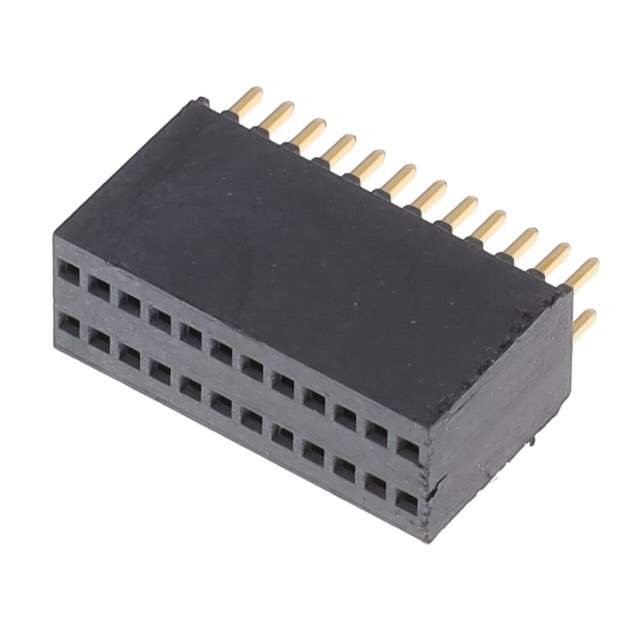

Same model may have multiple batches, images only for reference.

SMS-112-01-G-D

Name: SMS-112-01-G-D
Brand: Samtec Inc.
SKU: 1094583
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMS-112-01-G-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN SKT .050" 24POS / 24 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SMS
Package	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	24
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.100" (2.54mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Gold
Current Rating (Amps)	5A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	SMS-112
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	37
Win Source Part Number	1094583-SMS-112-01-G-D
Ultra Librarian 3D Model	Ultra Librarian SMS-112-01-G-D CAD Model

Description

The SMS series connectors from Samtec Inc. are rectangular connectors with a receptacle connector type and forked contact type.

Pitch: 0.050 inches (1.27mm)
Style: Board-to-board
Positions: 24 positions in two rows
Contact Material: Phosphor bronze
Contact Finish (Mating): Gold
Contact Finish (Post): 3.00µin (0.076µm) Gold
Insulation Material: Liquid crystal polymer (LCP)
Color: Black
Temperature Range: -55°C to 125°C
Current Rating: 5A per contact
Package: Tube
Standard Package: 37
