Same model may have multiple batches, images only for reference.

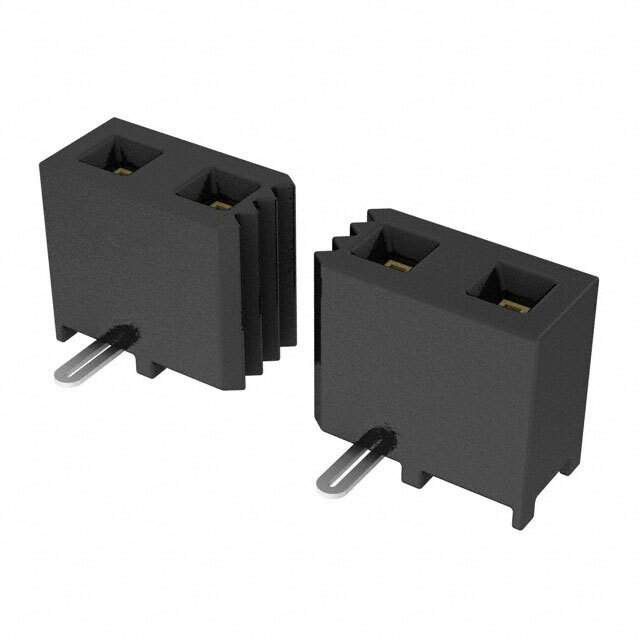

SMM-110-02-L-S Real Image
Same model may have multiple batches, images only for reference.

SMM-110-02-L-S

Part No SMM-110-02-L-S
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SMM-110-02-L-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SMM
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 10
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.140" (3.56mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 3.2A per Contact
Voltage Rating 350VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Base Product Number SMM-110
Other Names SMM-110-02-L-S,SAM11827
Standard Package 29
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285347-SMM-110-02-L-S
Ultra Librarian 3D Model Ultra Librarian SMM-110-02-L-S CAD Model

Description

The Samtec Inc. Tiger Eye™ SMM SMM-110-02-L-S is a receptacle connector that has 10 positions and is a board to board or cable style.

  • Positions: 10
  • Connector Style: Board to board or cable
  • Contact Type: Female Socket
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Package: Tube
  • Contact Material: Beryllium Copper
  • Voltage Rating: 350VAC
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Pitch - Mating: 0.079" (2.00mm)
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 10.0µin (0.25µm)
  • Contact Finish - Post: Tin
  • Insulation Height: 0.140" (3.56mm)
  • Temperature Range - Operating: -55°C ~ 125°C
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • Current Rating: 3.2A per contact
  • REACH Status: REACH unaffected
  • HTSUS: 8536.69.4040
  • Popularity: Medium
  • Manufacturer: Samtec Inc.
