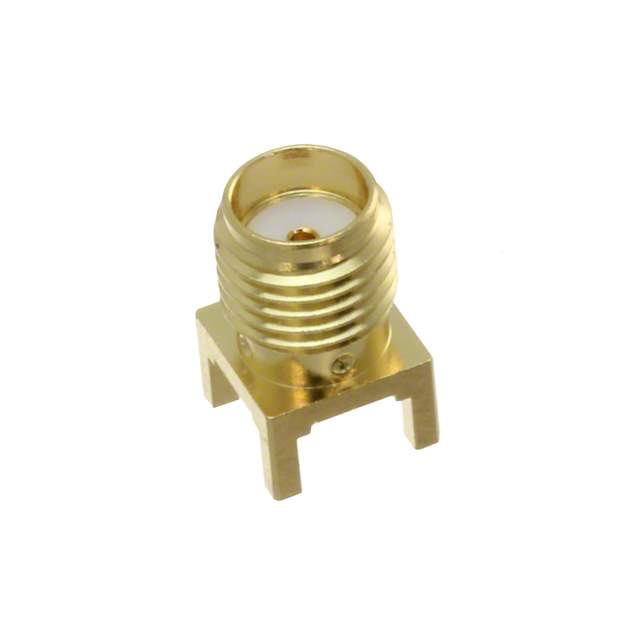

SMA-J-P-H-ST-MT1 Real Image
Same model may have multiple batches, images only for reference.

SMA-J-P-H-ST-MT1

Part No SMA-J-P-H-ST-MT1
Manufacturer Samtec Inc.
Catalog Coaxial Connectors (RF)
Description CONN SMA JACK STR 50 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Samtec Inc.
Packaging Bulk
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Style Surface Mount, Through Hole
Fastening Type Threaded
Frequency - Max 20GHz
Number of Ports 1
Housing Color Gold
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 125°C
Center Contact Material Copper Alloy
Voltage Rating 335V
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 811217-SMA-J-P-H-ST-MT1
Ultra Librarian 3D Model Ultra Librarian SMA-J-P-H-ST-MT1 CAD Model

Description

The SMA-J-P-H-ST-MT1 connector is a female jack socket connector with a threaded fastening type.

  • Voltage Rating: 335V
  • Impedance: 50Ohm
  • Frequency Range: Up to 20GHz
  • Operating Temperature: -65°C to 125°C
  • Body Finish: Gold
  • Body Material: Brass
  • Center Contact Plating: Gold
  • Shield Termination: Solder
  • Center Contact Material: Copper Alloy
  • Mounting Type: Surface Mount Technology (SMT) and Through Hole
  • Manufacturer: Samtec Inc.
  • ECCN: EAR99
