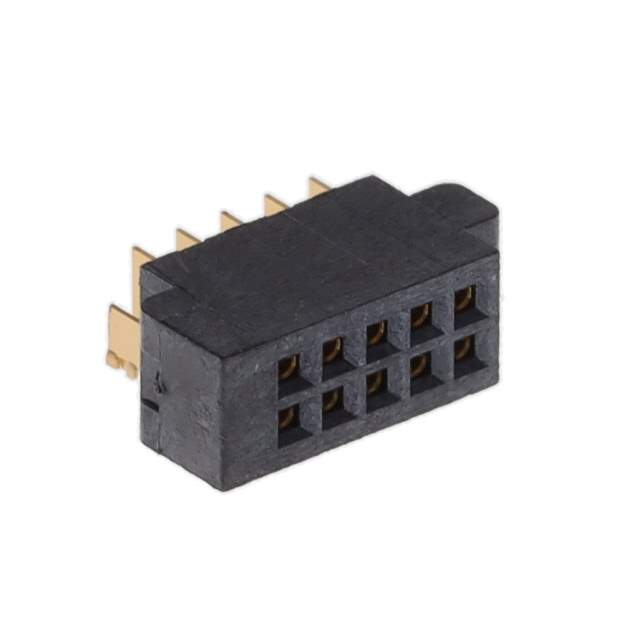

SFMH-105-02-L-D-TR Real Image
Same model may have multiple batches, images only for reference.

SFMH-105-02-L-D-TR

Part No SFMH-105-02-L-D-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFMH-105-02-L-D-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFMH
Package Tape & Reel
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 10
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.135" (3.43mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post Flash
Base Product Number SFMH-105
Other Names 612-SFMH-105-02-L-D-TR,612-SFMH-105-02-L-D-TRDKR,612-SFMH-105-02-L-D-TRCT,SFMH-105-02-L-D-TR
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285489-SFMH-105-02-L-D-TR
Ultra Librarian 3D Model Ultra Librarian SFMH-105-02-L-D-TR CAD Model

Description

This connector is a part of the Tiger Eye™ SFMH series and is a 10 position receptacle with female socket contacts.

  • Series: Tiger Eye™ SFMH
  • Positions: 10
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Fastening Type: Push-Pull
  • Termination: Solder
  • Contact Material: Phosphor Bronze
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Color: Black
  • Shape: Square
  • Temperature Range: -55°C to 125°C
  • Style: Board-to-Board
  • Pitch: 0.050" (1.27mm)
  • Contact Finish-Mating: Gold (10.0µin (0.25µm))
  • Packaging: Tape and Reel
  • Voltage Rating: No Voltage Rating
  • Ingress Protection: No Ingress Protection
  • REACH: Unaffected by REACH
  • ECCN: EAR99
