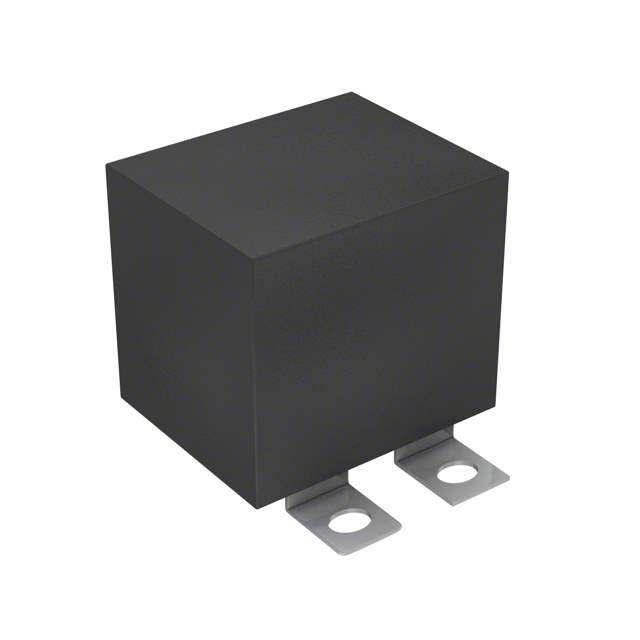

SCD105K202A3Z25-F Real Image
Same model may have multiple batches, images only for reference.

SCD105K202A3Z25-F

Part No SCD105K202A3Z25-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Description CAP FILM 1UF 10% 2KVDC SCREW / 1 µF Film Capacitor 630V 2000V (2kV) Polypropylene (PP), Metallized Rectangular Box
Datasheet
SCD105K202A3Z25-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SCD
Package Bulk
Capacitance 1 µF
Tolerance ±10%
Voltage Rating - AC 630V
Voltage Rating - DC 2000V (2kV)
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 6 mOhms
Temperature Range - Operating -55°C ~ 85°C
Mounting Type Chassis Mount
Package / Case Rectangular Box
Dimension 2.224" L x 1.827" W (56.50mm x 46.40mm)
Height - Seated (Max) 1.976" (50.20mm)
Termination Screw Terminals
Lead Spacing 1.000" (25.40mm)
Applications Snubber
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0080
Standard Package 1
Win Source Part Number 1091916-SCD105K202A3Z25-F
Ultra Librarian 3D Model Ultra Librarian SCD105K202A3Z25-F CAD Model

Description

The SCD105K202A3Z25-F capacitor from Cornell Dubilier Electronics (CDE) is a rectangular box film capacitor.

  • Capacitance: 1 µF ±10%
  • Voltage Rating: 630V AC / 2000V DC
  • Application: Snubber
  • ESR: 6 mOhms
  • Lifetime: -55°C ~ 85°C
  • Mounting: Chassis Mountable with Screw Terminals
  • Dimensions: 2.224" L x 1.827" W (56.50mm x 46.40mm)
