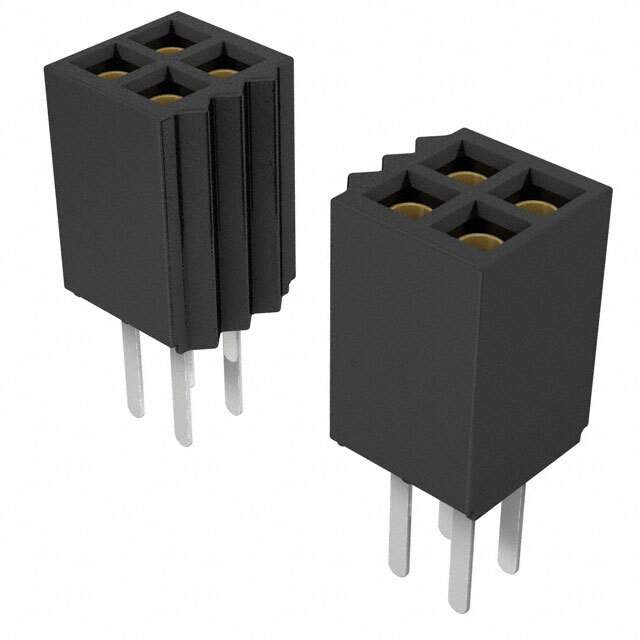

The Samtec Inc. Tiger Eye™ SFMC series SFMC-112-03-S-D-K-TR is a 24 position rectangular connector with headers, receptacles, and female sockets.

• Positions: 24
• Connector Type: Rectangular Connector with Headers, Receptacles, and Female Sockets
• Applications: Board-to-Board or Cable
• Pitch-Mating: 0.050” (1.27mm)
• Row Spacing-Mating: 0.050” (1.27mm)
• Contact Finish-Mating: Gold
• Contact Finish Thickness: 30.0μin (0.76μm)
• Contact Finish-Post: Tin
• Insulation Material: Liquid Crystal Polymer (LCP)
• Insulation Color: Black
• Mounting: Through-Hole
• Contact Length-Post: 0.075” (1.91mm)
• Insulation Height: 0.180” (4.57mm)
• Operating Temperature: -55°C to 125°C
• Current Rating: 2.9A per contact
• MSL Level: Not Applicable
• HTSUS: 8536.69.4040
