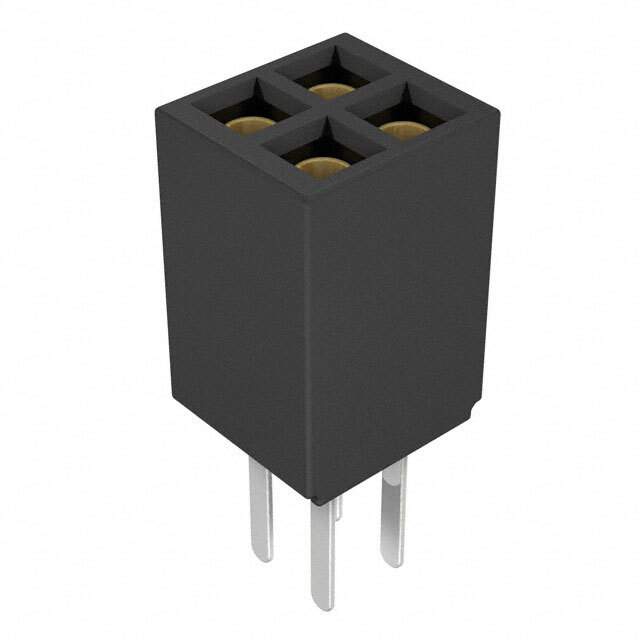

The Samtec Inc. SFMC-102-L1-S-D is a Tiger Eye™ SFMC series connector with four positions.

• Positions: Four
• Connector Type: Receptacle
• Contact Type: Female Sockets
• Positions Loaded: All
• Rows: Two
• Termination Method: Solder
• Fastening Type: Push-Pull
• Package: Bulk
• Contact Material: Beryllium Copper
• Voltage Rating: Not Specified
• Mated Stacking Heights: Not Specified
• Ingress Protection: No
• Material Flammability Rating: UL94 V-0
• Insulation Material: Liquid Crystal Polymer (LCP)
• Connections: Board-to-Board or Cable Style
• Mating Pitch: 0.050" (1.27mm)
• Contact Finish for Mating: Gold, with a thickness of 30.0µin (0.76µm)
• Post Finish: Tin
• Insulation Color: Black
• Mounting Type: Through-Hole
• Row Spacing for Mating: 0.050" (1.27mm)
• Contact Length for the Post: 0.120" (3.05mm)
• Insulation Height: 0.180" (4.57mm)
• Contact Shape: Square
• Operating Temperature Range: -55°C to 125°C
• Current Rating: 2.9A per contact
• HTSUS: 8536.69.4040
