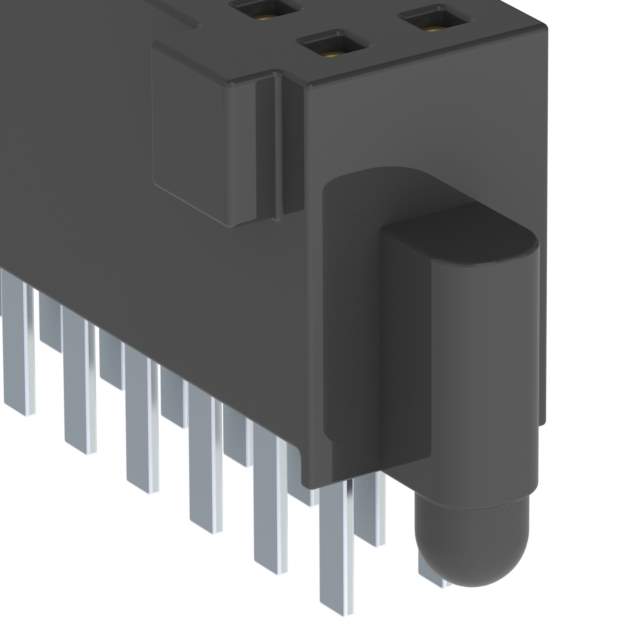

SFM-150-L3-S-D-A Real Image
Same model may have multiple batches, images only for reference.

SFM-150-L3-S-D-A

Part No SFM-150-L3-S-D-A
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFM-150-L3-S-D-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFM
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 100
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.180" (4.57mm)
Contact Length - Post 0.075" (1.91mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Mated Stacking Heights 6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
Features Board Guide
Current Rating (Amps) 3.2A per Contact
Voltage Rating 250VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Base Product Number SFM-150
Standard Package 8
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1287168-SFM-150-L3-S-D-A
Ultra Librarian 3D Model Ultra Librarian SFM-150-L3-S-D-A CAD Model

Description

The Tiger Eye™ SFM series from Samtec Inc. presents the SFM-150-L3-S-D-A receptacle connector, a rectangular connector with a female socket contact type.

  • Configuration: 2-row
  • Positions Loaded: 100
  • Pitch: 0.050 inches (1.27 mm)
  • Connector Material: Beryllium copper
  • Mating Contact Finish: Gold plating with a thickness of 30.0 µin (0.76 µm)
  • Post Contact Finish: Tin plating
  • Current Rating: 3.2A per contact
  • Voltage Rating: 250VAC
  • Mounting: Through-hole
  • Fastening Type: Push-pull
  • Package: Tube
  • Standard Package: 8
  • Mated Stacking Heights: 6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, and 11.63mm
  • Temperature Range: -55°C to 125°C
  • Insulation Material: Liquid crystal polymer (LCP)
  • Flammability Rating: UL94 V-0
