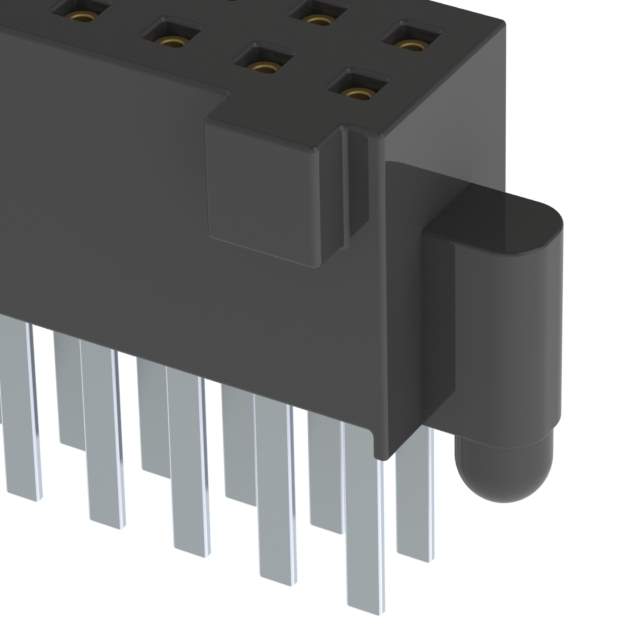

The Tiger Eye™ SFM series is a high-quality range of connectors designed for board-to-board or cable connections, with a receptacle connector type and female socket contact type.

• Positions: 100
• Positions Loaded: All
• Connector Type: Receptacle
• Contact Type: Female Socket
• Fastening Type: Board Guide
• Mechanism: Push-Pull
• Contact Material: Beryllium Copper
• Insulation Material: Liquid Crystal Polymer (LCP)
• Insulation Color: Black
• Voltage Rating: 250VAC
• Current Rating: 3.2A per contact
• Pitch: 0.050" (1.27mm)
• Mated Stacking Height: 6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
• Mounting: Through-Hole
• Contact Length: Post 0.120" (3.05mm)
• Temperature Range: -55°C ~ 125°C
