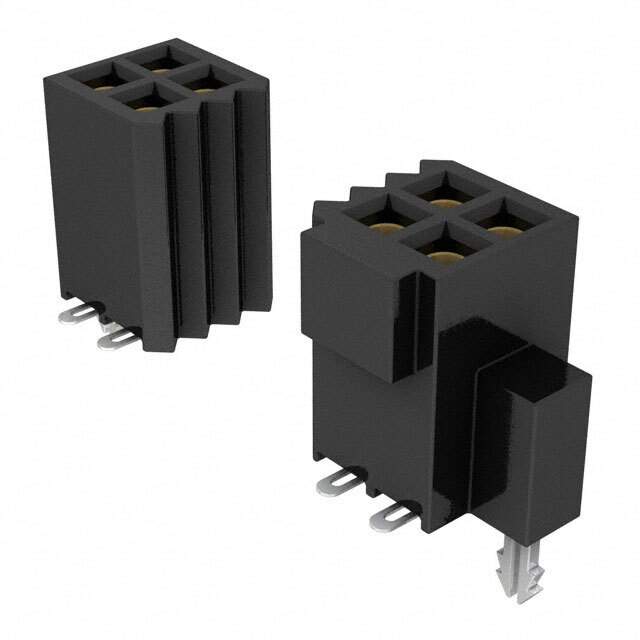

Same model may have multiple batches, images only for reference.

SFM-150-02-L-D-LC

Name: SFM-150-02-L-D-LC
Brand: Samtec Inc.
SKU: 1287149
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SFM-150-02-L-D-LC
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SFM-150-02-L-D-LC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFM
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	100
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.185" (4.70mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
Features	Board Lock
Current Rating (Amps)	3.2A per Contact
Voltage Rating	250VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SFM-150
Other Names	SFM-150-02-L-D-LC,SAM11725
Standard Package	8
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1287149-SFM-150-02-L-D-LC
Ultra Librarian 3D Model	Ultra Librarian SFM-150-02-L-D-LC CAD Model

Alternative Products

Description

The Samtec Inc. Tiger Eye SFM Rectangular Connector is a high-quality electronic component that is designed to provide reliable and efficient board-to-board or cable connections.

Positions: 100
Connector Type: Receptacle
Sockets: Female
Manufacturer: Samtec Inc.
Win Source Part Number: 1287149-SFM-150-02-L-D-LC
