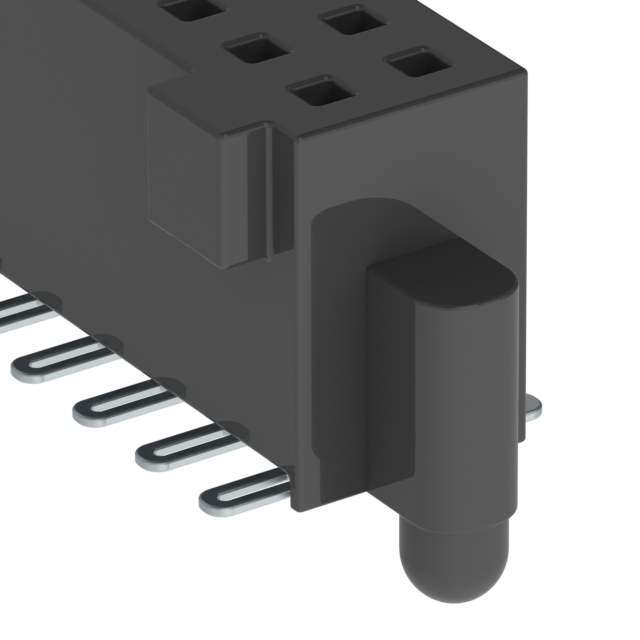

The Tiger Eye™ SFM series from Samtec Inc. offers a high-quality solution for your rectangular connector needs.

• Description: This receptacle connector has 70 positions, with female socket contacts that are loaded on both rows.
• Pitch: 0.050” (1.27mm).
• Mated Stacking Heights: ranging from 6.15mm to 11.76mm.
• Contacts Material: beryllium copper and have a gold finish.
• Post Finish: tin finish.
• Voltage Rating: 250VAC.
• Current: 3.2A per contact.
• Mounting: SMD (SMT) technology.
• Fastening Type: push-pull.
• Package: tape & reel package.
• Material Flammability Rating: UL94 V-0.
• Insulation Material: Liquid Crystal Polymer (LCP).
• Ingress Protection Rating: -.
