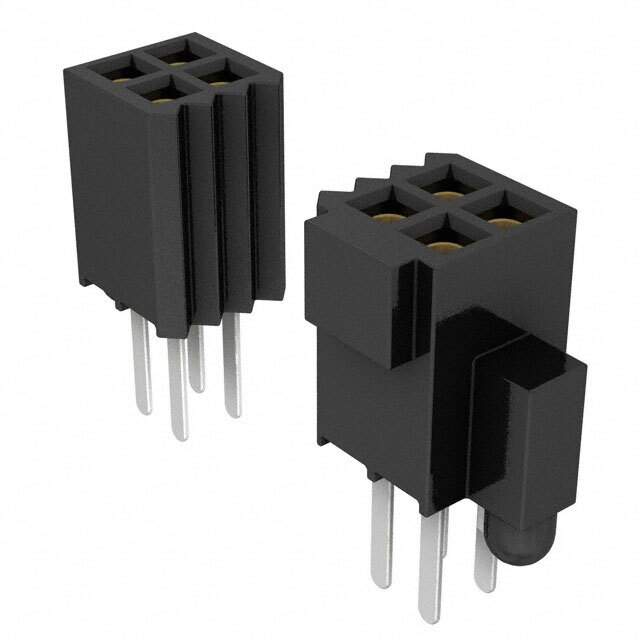

The SFM-135-01-S-D-A-K connector is a high-performance, board-to-board or cable connector designed for use in various applications. The Tiger Eye™ SFM series connector is designed by Samtec Inc.

• Positions: 70
• Positions Loaded: All
• Connector Type: Receptacle
• Contact Type: Female Socket
• Pitch-Mating: 0.050" (1.27mm)
• Contact Finish-Mating: Gold with a thickness of 30.0µin (0.76µm)
• Fastening Type: Push-Pull
• Mounting Type: Through-Hole
• Contact Material: Beryllium Copper
• Insulation Material: Liquid Crystal Polymer (LCP)
• Insulation Height: 0.180" (4.57mm)
• Insulation Color: Black
• Contact Length-Post: 0.120" (3.05mm)
• Contact Shape: Square
• Operating Temperature Range: -55°C ~ 125°C
• ECCN: EAR99
• MSL Level: Not Applicable
