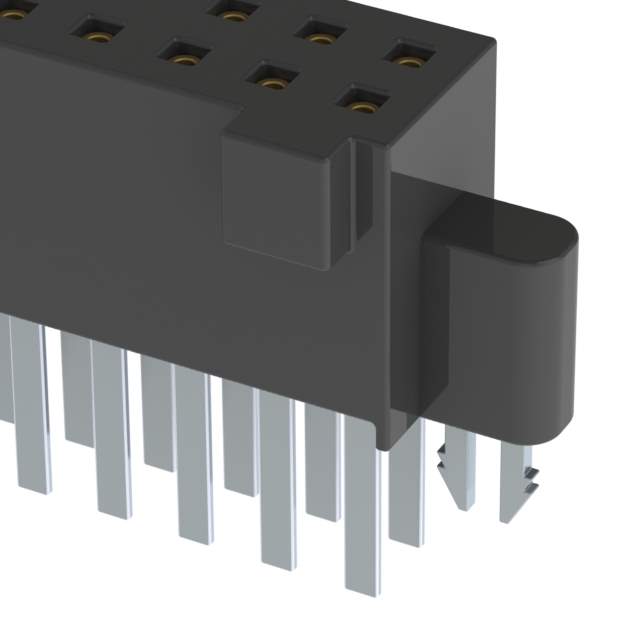

Same model may have multiple batches, images only for reference.

SFM-125-L1-S-D-LC

Name: SFM-125-L1-S-D-LC
Brand: Samtec Inc.
SKU: 1287010
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SFM-125-L1-S-D-LC
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SFM-125-L1-S-D-LC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFM
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	50
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.120" (3.05mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
Features	Board Lock
Current Rating (Amps)	3.2A per Contact
Voltage Rating	250VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SFM-125
Standard Package	16
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1287010-SFM-125-L1-S-D-LC
Ultra Librarian 3D Model	Ultra Librarian SFM-125-L1-S-D-LC CAD Model

Alternative Products

Description

The 1287010-SFM-125-L1-S-D-LC is a rectangular connector designed for electronic components.

Series: Tiger Eye™ SFM
Base Product Number: SFM-125
Package: Tube
Standard Package: 16
Feature: Board lock
Type: Receptacle with female sockets
Contact Material: Beryllium copper
Voltage Rating: 250VAC
Style: Board to board or cable style connection
Pitch Mating: 0.050" (1.27mm)
Contact Finish Mating: Gold with a thickness of 30.0µin (0.76µm)
Post Finish: Tin
Current Rating: 3.2A per contact
Temperature Range: -55°C to 125°C
