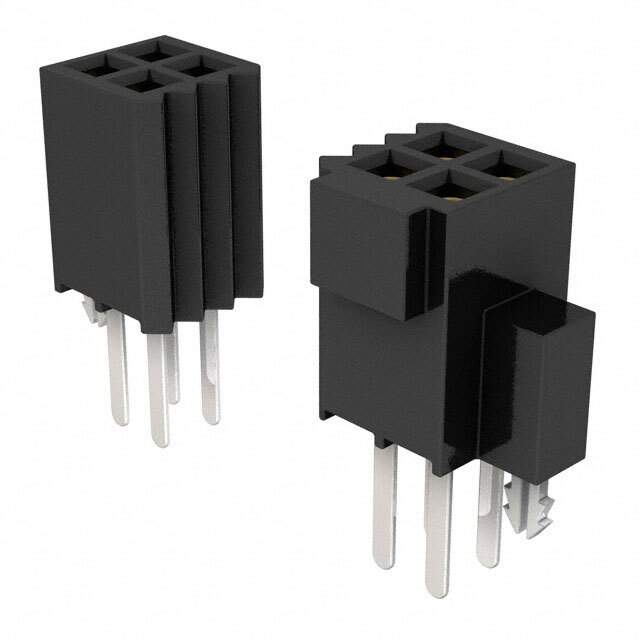

The Samtec Tiger Eye™ SFM is a type of rectangular connector that comes in headers, receptacles, and female sockets.

• Series: Tiger Eye™ SFM
• Number of Circuits: 30
• Connector Type: Receptacle
• Contact Type: Female socket
• Positions Loaded: All
• Rows: Two
• Termination: Solder
• Fastening Type: Push-pull
• Package: Tube
• Contact Material: Beryllium copper
• Voltage Rating: 250VAC
• Mated Stacking Heights: 6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
• Insulation Material: Liquid crystal polymer (LCP)
• Pitch-Mating: 0.050" (1.27mm)
• Contact Finish-Mating: Gold
• Contact Finish Thickness-Mating: 10.0µin (0.25µm)
• Contact Finish-Post: Tin
• Contact Finish Thickness-Post: Not specified
• Insulation Color: Black
• Mounting Type: Through-hole
• Row Spacing-Mating: 0.050" (1.27mm)
• Contact Length-Post: 0.120" (3.05mm)
• Insulation Height: 0.180" (4.57mm)
• Contact Shape: Square
• Temperature Range: -55°C to 125°C
• Current Rating: 3.2A per contact
