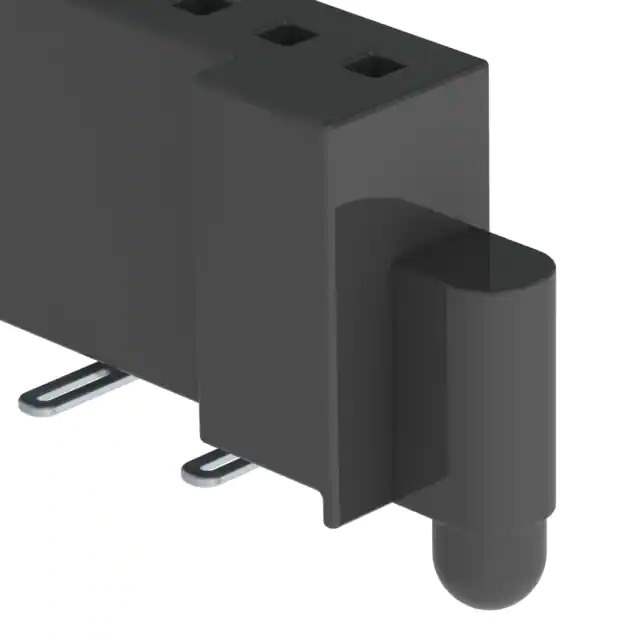

Same model may have multiple batches, images only for reference.

SFM-110-02-S-S-A

Name: SFM-110-02-S-S-A
Brand: Samtec Inc.
SKU: 894261
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SFM-110-02-S-S-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 10POS 0.05 GOLD SMD / 10 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFM
Package	Tube
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	10
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	1
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.185" (4.70mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
Features	Board Guide
Current Rating (Amps)	3.2A per Contact
Voltage Rating	250VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SFM-110
Standard Package	35 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	894261-SFM-110-02-S-S-A
Ultra Librarian 3D Model	Ultra Librarian SFM-110-02-S-S-A CAD Model

Alternative Products

Description

The SFM-110-02-S-S-A is a 10-position female socket receptacle connector from Samtec Inc.

Manufacturer:Samtec Inc.
Series: Tiger Eye™ SFM series
Product Name:SFM-110-02-S-S-A
Positions: 10
Type: Female Socket Receptacle Connector
Feature: Board Guide
Mounting: Surface Mount
Fastening Type: Push-Pull
Contact Material: Beryllium Copper
Mating Finish: Gold
Contact Finish Thickness: 30.0μin (0.76μm)
Insulation Material: Black Liquid Crystal Polymer (LCP)
Height: 0.185" (4.70mm)
Contact Shape: Square
Operating Temperature: -55°C to 125°C
Package: Tube
Standard Package: 35 pcs
