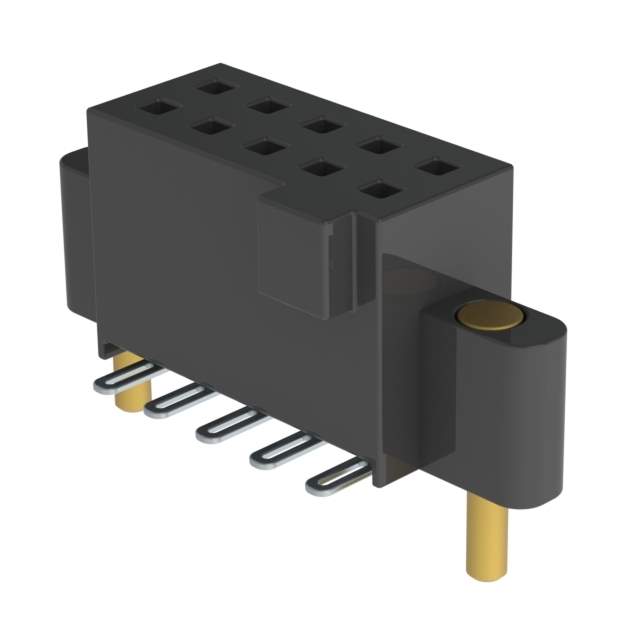

The Tiger Eye™ SFM series is a family of connectors from Samtec Inc.

• Connector Series: Tiger Eye™ SFM
• Model: SFM-105-T2-S-D-SN
• Connector Type: Receptacle
• Contact Type: Female Socket
• Fastening Type: Push-Pull
• Number of Positions: 10
• Positions Loaded: All Loaded
• Number of Rows: 2
• Pitch: 0.050" (1.27mm)
• Mated Stacking Height: 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
• Voltage Rating: 250VAC
• Contact Material: Phosphor Bronze
• Insulation Material: Liquid Crystal Polymer (LCP)
• Contact Finish (Mating): Gold
• Contact Finish Thickness (Mating): 30.0µin (0.76µm)
• Contact Finish (Post): Tin
• Insulation Color: Black
• Mounting Type: SMD (SMT)
• Row Spacing (Mating): 0.050" (1.27mm)
• Insulation Height: 0.185" (4.70mm)
• Contact Shape: Square
• Operating Temperature: -55°C to 125°C
