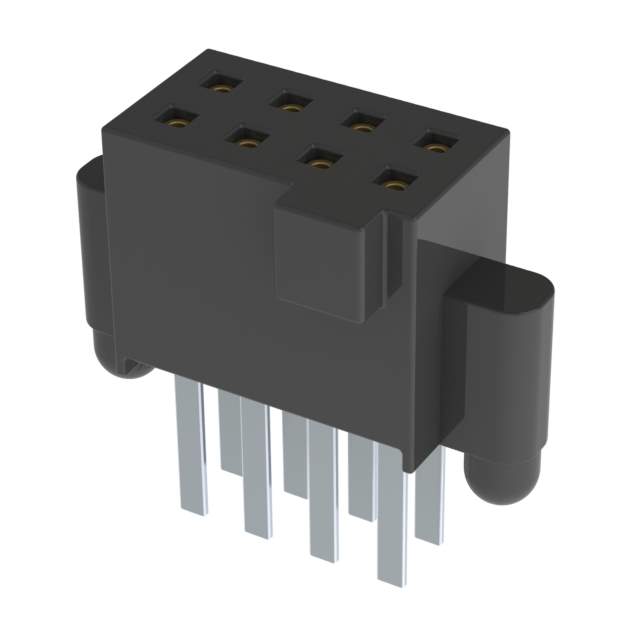

Name: SFM-104-01-L-D-A
Brand: Samtec Inc.
SKU: 1286738
Availability: InStock

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFM
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	8
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.120" (3.05mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
Features	Board Guide
Current Rating (Amps)	3.2A per Contact
Voltage Rating	250VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SFM-104
Standard Package	64
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1286738-SFM-104-01-L-D-A
Ultra Librarian 3D Model	Ultra Librarian SFM-104-01-L-D-A CAD Model

Description

The Tiger Eye SFM connector is a rectangular connector that belongs to the category of connectors and interconnects.

Connector Type: Receptacle
Contact Type: Female Socket
Positions: 8
All Positions Loaded: Yes
Rows: 2
Termination: Solder
Fastening Type: Push-Pull
Voltage Rating: 250VAC
Insulation Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Pitch-Mating: 0.050" (1.27mm)
Mounting: Through-Hole
Contact Finish-Mating: Gold
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Finish-Post: Tin
Row Spacing-Mating: 0.050" (1.27mm)
Contact Length-Post: 0.120" (3.05mm)
Contact Shape: Square
Operating Temperature Range: -55°C ~ 125°C
