Same model may have multiple batches, images only for reference.

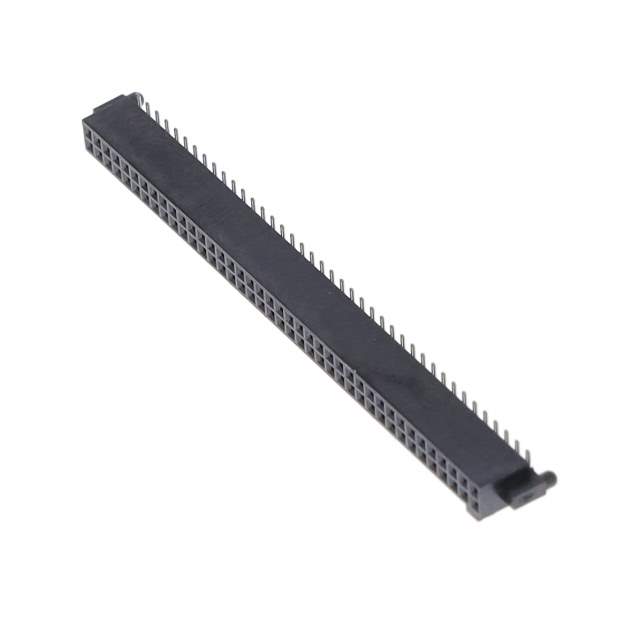

SFC-140-T2-F-D-A-K-TR Real Image
Same model may have multiple batches, images only for reference.

SFC-140-T2-F-D-A-K-TR

Part No SFC-140-T2-F-D-A-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 80POS 0.05 GOLD SMD / 80 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFC
Package Tape & Reel
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 80
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Insulation Color Black
Insulation Height 0.180" (4.57mm)
Temperature Range - Operating -55°C ~ 125°C
Contact Finish - Post Tin
Features Board Guide, Pick and Place
Current Rating (Amps) 3.1A per Contact
Voltage Rating 350VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SFC-140
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 612-SFC-140-T2-F-D-A-K-TR,612-SFC-140-T2-F-D-A-K-TRCT,SFC-140-T2-F-D-A-K-TR-ND,612-SFC-140-T2-F-D-A-K-TRDKR
Standard Package 525
Win Source Part Number 1092419-SFC-140-T2-F-D-A-K-TR
Ultra Librarian 3D Model Ultra Librarian SFC-140-T2-F-D-A-K-TR CAD Model

Description

The Tiger Eye™ SFC series is a range of rectangular connectors designed for board-to-board or cable applications.

  • Series: Tiger Eye™ SFC
  • Type: Rectangular Connector
  • Applications: Board-to-Board or Cable
  • Connector Type: Receptacle, Female Socket
  • Positions Loaded: 80
  • Pitch: 0.050 inches (1.27mm)
  • Contact Shape: Square
  • Contact Material: Phosphor Bronze
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Mounting: Surface Mount (SMD) (SMT)
  • Fastening Type: Push-Pull
  • Contact Finish-Mating: Gold
  • Contact Finish Thickness: 3.00μin (0.076μm)
  • Contact Finish-Post: Tin
  • Voltage Rating: 350VAC
  • Current Rating: 3.1A per contact
  • Package: Tape & Reel
  • Standard Package: 525
  • Operating Temperature: -55°C to 125°C
