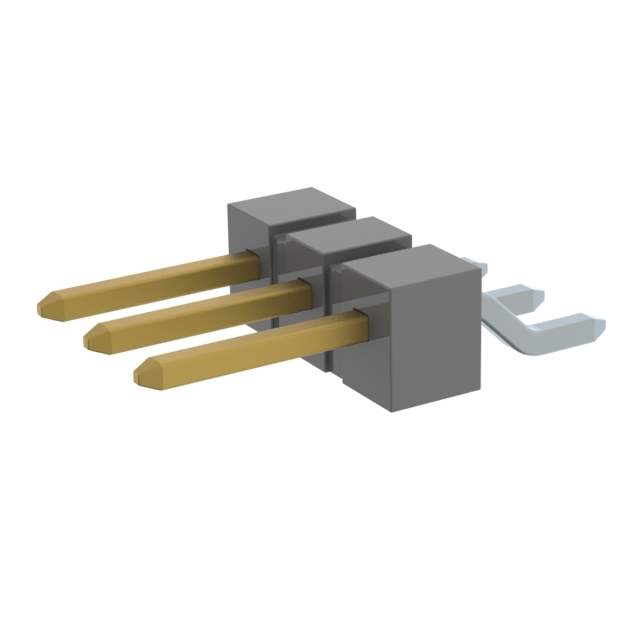

TSM-103-01-L-SH

Name: TSM-103-01-L-SH
Brand: Samtec Inc.
SKU: 1332338
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TSM-103-01-L-SH
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 3POS 2.54MM / Connector Header Surface Mount, Right Angle 3 position 0.100" (2.54mm)
Datasheet	TSM-103-01-L-SH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Samtec Inc.
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Insulation Height	0.120" (3.05mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	TSM-103
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	SAM10270
Standard Package	76
Win Source Part Number	1332338-TSM-103-01-L-SH
Ultra Librarian 3D Model	Ultra Librarian TSM-103-01-L-SH CAD Model

Alternative Products

Description

The Samtec Inc. TSM-103-01-L-SH is a 3-position male pin header connector designed for use in board-to-board or cable applications.

Contact Material: Phosphor Bronze
Contact Finish: Gold
Pitch: 0.100" (2.54mm)
Contact Length: 0.230" (5.84mm)
Mounting: Surface Mount, Right Angle
Insulation Height: 0.120" (3.05mm)
Insulation Color: Black
Temperature Range: -55°C ~ 125°C
Shrouding: Unshrouded
Fastening Type: Push-Pull
