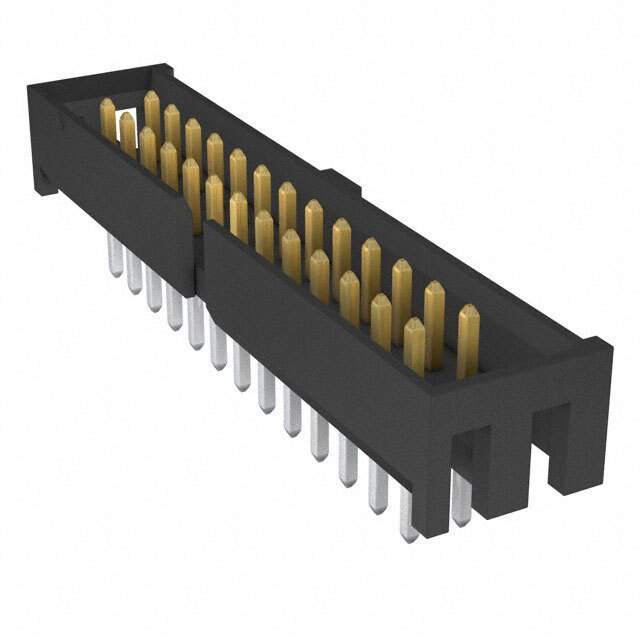

STMM-113-02-L-D Real Image
Same model may have multiple batches, images only for reference.

STMM-113-02-L-D

Part No STMM-113-02-L-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
STMM-113-02-L-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series Flex Stack, STMM
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 26
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.302" (7.67mm)
Insulation Height 0.190" (4.83mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Slot
Temperature Range - Operating -55°C ~ 125°C
Insulation Color Black
Current Rating (Amps) 3A
Base Product Number STMM-113
Other Names SAM11983,STMM-113-02-L-D
Standard Package 18
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293188-STMM-113-02-L-D
Ultra Librarian 3D Model Ultra Librarian STMM-113-02-L-D CAD Model

Description

The 1293188-STMM-113-02-L-D is a header connector with 26 positions and 2 rows.

  • Positions: 26
  • Rows: 2
  • Keying Slot: Yes
  • Shrouding: Shrouded-4 Wall
  • Contact Shape: Square
  • Pitch: 0.079 inches (2.00mm)
  • Contact Finish: Gold
  • Contact Finish Thickness (Mating): 10.0µin (0.25µm)
  • Contact Finish (Post): Not Specified
  • Mounting: Through-Hole
  • Contact Length (Mating): 0.120 inches (3.05mm)
  • Contact Length (Post): 0.118 inches (3.00mm)
  • Overall Contact Length: 0.302 inches (7.67mm)
  • Insulation Height: 0.190 inches (4.83mm)
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Contact Material: Phosphor Bronze
  • Temperature Range: -55°C to 125°C
  • Application: Board-to-Cable/Wire
  • Package: Tube
  • RoHS: Compliant
  • REACH: Unaffected
