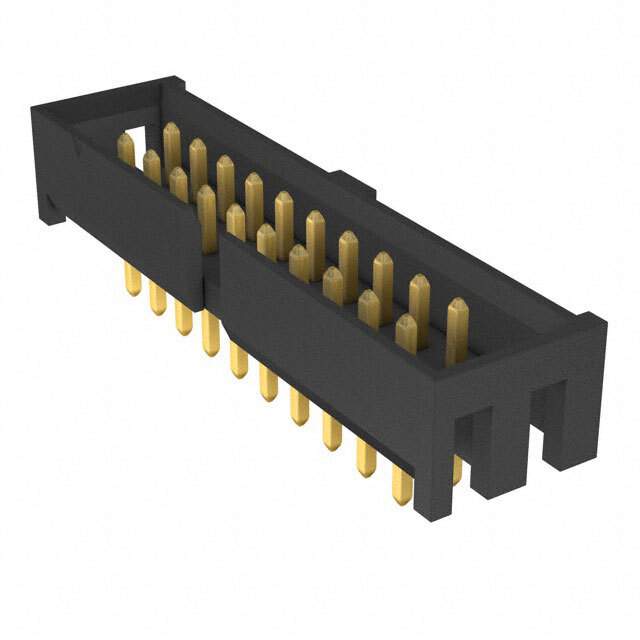

Same model may have multiple batches, images only for reference.

STMM-110-01-G-D

Name: STMM-110-01-G-D
Brand: Samtec Inc.
SKU: 1293191
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	STMM-110-01-G-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	STMM-110-01-G-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Flex Stack, STMM
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.100" (2.54mm)
Contact Length - Post	0.092" (2.34mm)
Overall Contact Length	0.255" (6.48mm)
Insulation Height	0.190" (4.83mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20.0µin (0.51µm)
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 125°C
Insulation Color	Black
Current Rating (Amps)	3A
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	STMM-110
Standard Package	22
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293191-STMM-110-01-G-D
Ultra Librarian 3D Model	Ultra Librarian STMM-110-01-G-D CAD Model

Alternative Products

Description

The STMM-110-01-G-D is a male pin header connector from Samtec Inc.

Positions Loaded: 20
Row Count: 2
Series: Flex Stack, STMM
Pitch: 0.079 inches (2.00mm)
Contact Shape: Square
Shrouding: Shrouded with 4 walls
Keying: Keying slot
Contact Material: Phosphor Bronze
Contact Finish (Mating): Gold, 20.0µin (0.51µm)
Contact Finish (Post): Gold, 3.00µin (0.076µm)
Current Rating: 3A
Operating Temperature: -55°C to 125°C
Termination: Solder
Mounting Type: Through-Hole
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Application: Board to cable/wire
