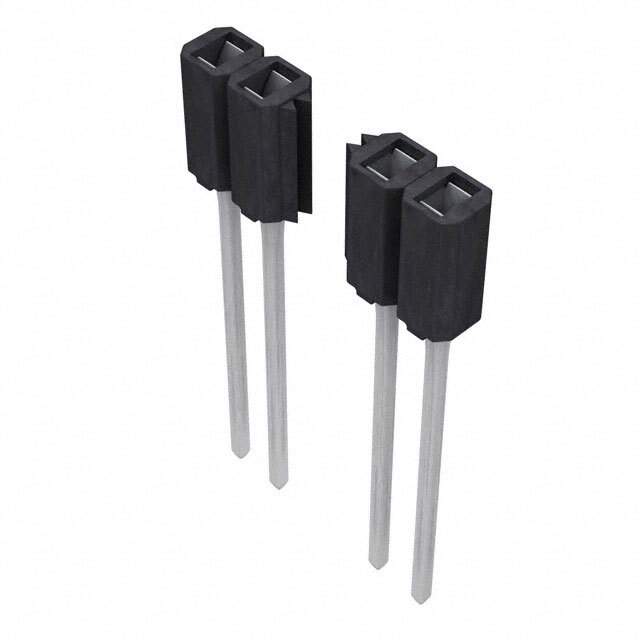

The SSA series receptacle connector is a breakaway connector with a push-pull fastening type and wire wrap termination.

• Series: SSA series
• Connector Type: breakaway connector
• Fastening Type: push-pull
• Termination: wire wrap
• Number of Rows: single row
• Number of Positions: 25 positions
• Positions Loaded: all loaded
• Contact Type: female socket contacts
• Contact Material: phosphor bronze material
• Voltage Rating: 1000V
• Insulation Material: black polyethylene terephthalate (PET)
• Pitch-Mating: 0.100" (2.54mm)
• Contact Finish-Mating: tin
• Temperature Range: -55°C to 105°C
• Flammability Rating: UL94 V-0
• Application: board-to-board applications
• Package: bulk
