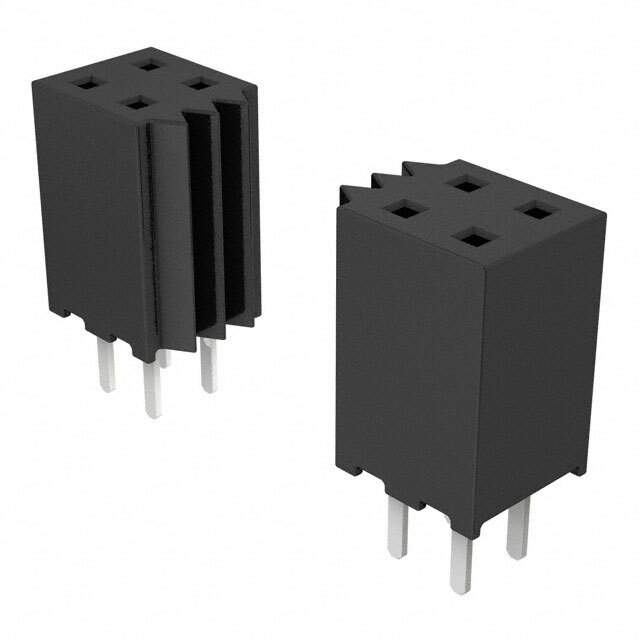

Same model may have multiple batches, images only for reference.

SQW-144-01-L-D

Name: SQW-144-01-L-D
Brand: Samtec Inc.
SKU: 1292251
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SQW-144-01-L-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SQW-144-01-L-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SQW
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	88
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.250" (6.35mm)
Contact Length - Post	0.090" (2.29mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	3.8A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SQW-144
Other Names	SAM1249-44
Standard Package	1
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292251-SQW-144-01-L-D
Ultra Librarian 3D Model	Ultra Librarian SQW-144-01-L-D CAD Model

Alternative Products

Description

The SQW series receptacle connector is a rectangular connector with two rows and 88 positions.

Applications: board-to-board or cable
Insulation Material: liquid crystal polymer (LCP)
Flammability Rating: UL94 V-0
Contact Material: phosphor bronze
Contact Finish: gold, with a thickness of 10.0µin (0.25µm)
Contact Type: forked
Positions Loaded: all
Fastening Type: push-pull
Mounting: through hole
Mating Pitch: 0.079" (2.00mm)
Row Spacing: 0.079" (2.00mm)
Contact Length: 0.090" (2.29mm)
Insulation Height: 0.250" (6.35mm)
Operating Temperature: -55°C ~ 125°C
Current Rating: 3.8A per contact
Manufacturer: Samtec Inc.
