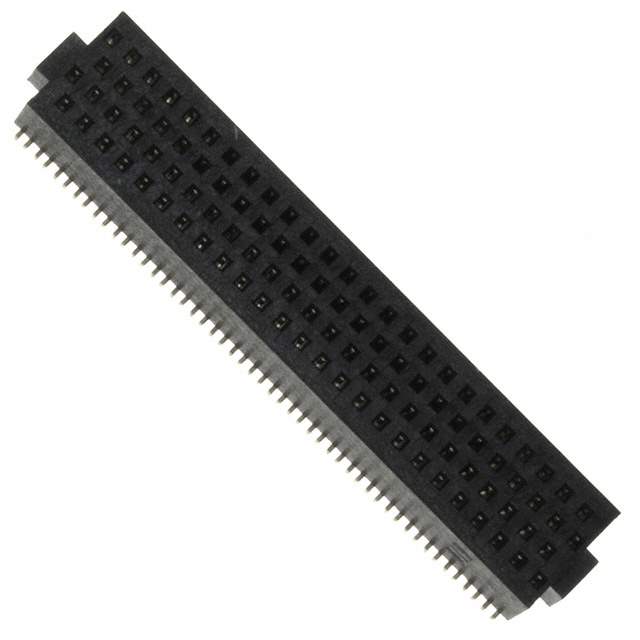

Same model may have multiple batches, images only for reference.

SOLC-125-02-S-Q

Name: SOLC-125-02-S-Q
Brand: Samtec Inc.
SKU: 1293053
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SOLC-125-02-S-Q
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SOLC-125-02-S-Q Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	FOURRAY™ SOLC
Package	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	100
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	4
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.160" (4.06mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Current Rating (Amps)	2.4A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	SOLC-125
Other Names	SAM8494
Standard Package	16
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293053-SOLC-125-02-S-Q
Ultra Librarian 3D Model	Ultra Librarian SOLC-125-02-S-Q CAD Model

Alternative Products

Description

The FOURRAY SOLC-125-02-S-Q is a 100-position rectangular connector from Samtec Inc.

Connector Type: Receptacle
Contact Type: Forked
Contact Material: Phosphor Bronze
Contact Finish (Mating): Gold, 30.0 microns
Post-Contact Finish: Gold, 3.00 microns
Pitch-Mating: 0.050 inches (1.27mm)
Mounting: SMD (SMT) technology
Current Rating: 2.4A per contact
Temperature Range: -55 degrees Celsius to 125 degrees Celsius
Flammability Rating: UL94 V-0
Insulation: Liquid crystal polymer (LCP)
Packaging: Tube
Applications: Board-to-Board
